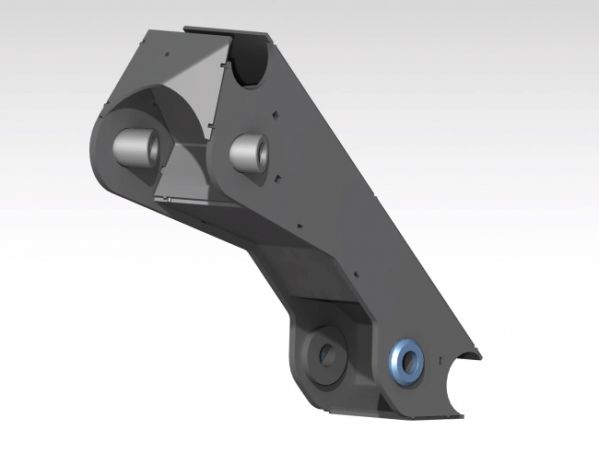

Trophy Truck Rear Pivot Boxes (CAD File)

They're set up for rear 4 link systems, typically running 55-60" lower link lengths. JRT designed these for his full-size truck tube chassis builds, so the geometry is already dialed in for that range.

Yep, these are designed around fabricated Ford 9 inch housings, so that's exactly what they're meant to run with. If you're using something else, shoot us an email and we'll see if it'll work for your build.

You get the DXF cutting files (or solid CAD) so you can run them on a CNC plasma, laser, or waterjet. The plates are designed to be cut and then bent on a press, so you'll need to do the bending after they're cut.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Trophy Truck Rear Pivot Boxes (CAD File) is $200.00.
