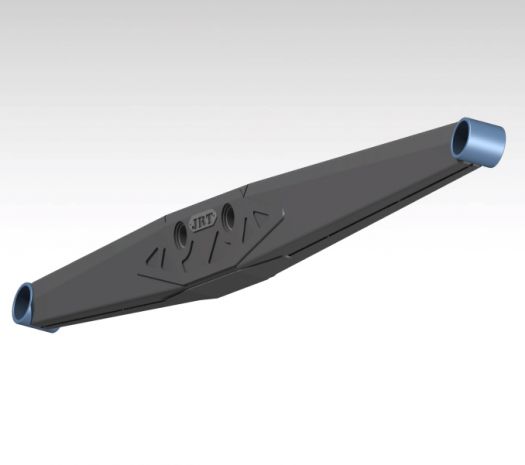

60" Race Link Arm from JRT-Fab (CAD File)

Be the first to review this product

$600.00

In stock

SKU

605-JRT-003

60" Race Link Arms designed to be TIG welded from 4130 material, race quality and strength, these CAD files are perfect for a race truck build.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	Jacob Todd

Specifications

Platform	Trophy Truck / Trick Truck (TT)
Part Family	Boxed / Clevis / Tube Link Arms & Trailing Arms
Build System	Mild-steel MIG vs 4130 chromoly TIG

Frequently Asked Questions

What material are these link arms meant to be cut and welded from?

These are designed to be TIG welded from 4130 chromoly for race quality and strength. Cut your plates on a plasma, laser, or waterjet, bend what needs bending, then weld it all up.

Do I get DXF files I can run on my plasma table, or just the 3D CAD?

You're purchasing the digital files for this component — DXF cutting files or the solid CAD, so you can have the plates cut on a CNC plasma, laser, or waterjet. Nothing physical ships, you take the files and get them cut for your build.

Are these a straight 60" or do I need to adjust the length for my trophy truck?

These are designed as 60" race link arms straight from JRTfab, built for a race truck build. If you need something dialed in different for your setup, email us and we can connect you with the designer for custom work.

How do I get the 60" Race Link Arm from JRT-Fab (CAD File) after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 60" Race Link Arm from JRT-Fab (CAD File) cost?

The 60" Race Link Arm from JRT-Fab (CAD File) is $600.00.

Who designs the 60" Race Link Arm from JRT-Fab (CAD File)?

This 60" Race Link Arm from JRT-Fab (CAD File) is brought to you by JRTfab. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Trophy Truck Link Arms?

DIY Off Road has downloadable DXF cut files for Trophy Truck Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Trophy Truck Link Arms category, or shoot us an email and we will point you to the right files for your build.

Do you have Desert Racing / Pre-runner Link Arms cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Trophy Truck Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
