T4 Rear End Lower Link Mounts

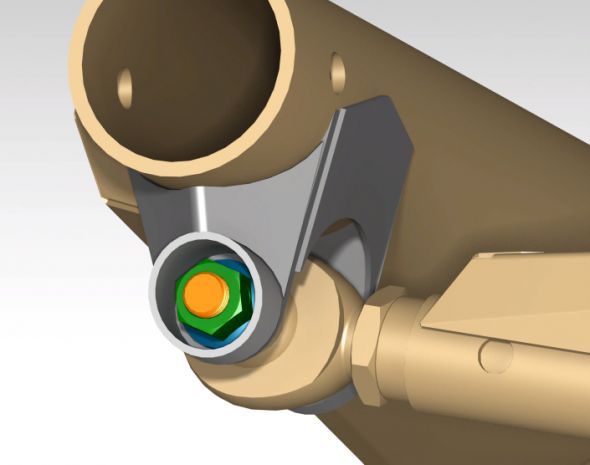

These lower link mounts are designed for racing applications in mind with style to match the T4 rear end housings from JEHC. They are set up for 1.25” rod ends on ¾” bolts and can be mounted either in front of the housing or under the housing and all angles in between.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Under-housing vs front-of-housing (lower link mount) |
| Build System | Link suspension (general rod-end / uniball link) |
Frequently Asked Questions
These are designed for 1.25" rod ends on 3/4" bolts, so they're ready to go for that setup. If you're running a different rod end size, shoot us an email and we'll see if we can point you the right way.
Yep, these are made to mount either in front of the housing, under it, or any angle in between, so you've got flexibility for whatever your link geometry needs.
These are DXF cut files for plates that get cut on a plasma, laser, or waterjet and then press bent, so there's a bend step before you weld them in. If you need a shop to cut and bend them for you, email us and we'll recommend someone.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The T4 Rear End Lower Link Mounts is $22.00.
The T4 Rear End Lower Link Mounts is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for T4 Trophy Truck Rear End Housing from TEKK plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the T4 Trophy Truck Rear End Housing from TEKK category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Fabricated Housings from JEHC INC, including T4 Trophy Truck Rear End Housing from TEKK, all designed by working fab shops. Browse the Fabricated Housings from JEHC INC section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
