T4 Trophy Truck Housing Center Section

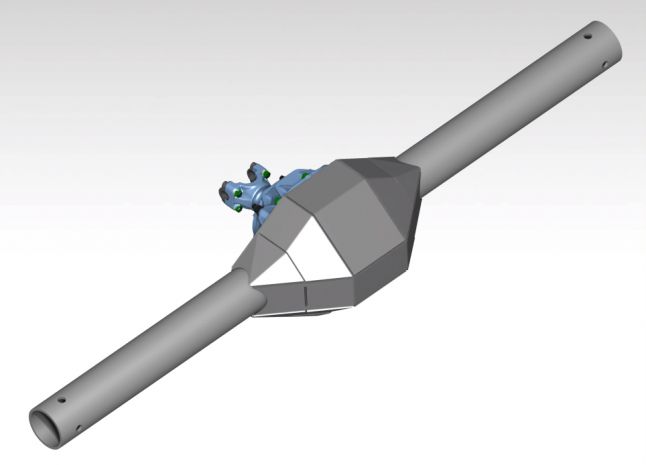

This Fabricated rear end housing from JEHC is designed for serious pre-runners and race trucks like a Trophy Truck/6100 or a Fullsize Luxury Prerunner. It features an internal trussed and boxed center section for a strength to weight ratio better than most fabricated housings on the market. This Center section is designed to be cut from 4130 Chromoly and TIG welded requiring an expert level of fabrication skill.
Designed for up to Ford 9”/10” race gear sets this housing will work with all major third member setups that are commonly found on race trucks. The tube diameter for this housing is 4” by .250 wall, we strongly suggest 4130 Chromoly tube be utilized. The faceplate is designed for press in ARP third member studs, standard issue for high-performance applications like this.
This housing is designed with a 1" pinion offset to the passanger side of the vehicle.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Rear End Housing / Center Section (fabricated) |
| Position | Rear suspension |
| Build System | Mild-steel MIG vs 4130 chromoly TIG |
Frequently Asked Questions
This center section is designed to be cut from 4130 Chromoly and TIG welded, so it takes expert-level fab skill. For the tubes we strongly suggest 4130 Chromoly at 4" diameter with .250 wall.
Yep, it's designed for up to Ford 9"/10" race gear sets and will work with all the major third member setups commonly found on race trucks. The faceplate is set up for press-in ARP third member studs.
It's designed with a 1" pinion offset to the passenger side of the vehicle. Keep that in mind when you're laying out your driveline.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The T4 Trophy Truck Housing Center Section is $300.00.
