55" Race Link Arm from JRT-Fab (CAD File)

Be the first to review this product

$550.00

In stock

SKU

605-JRT-002

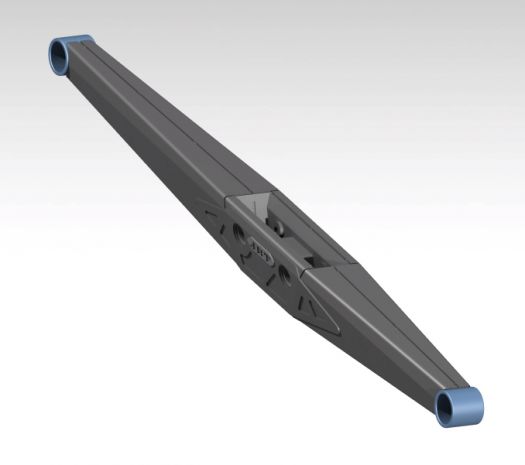

55" Race Link Arms designed to be TIG welded from 4130 material, race quality and strength, these CAD files are perfect for a race truck build.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	Jacob Todd

Specifications

Platform	Trophy Truck / Trick Truck (TT)
Part Family	Boxed / Clevis / Tube Link Arms & Trailing Arms
Build System	Mild-steel MIG vs 4130 chromoly TIG
