TT Rear Suspension Assembly from BajaCustoms

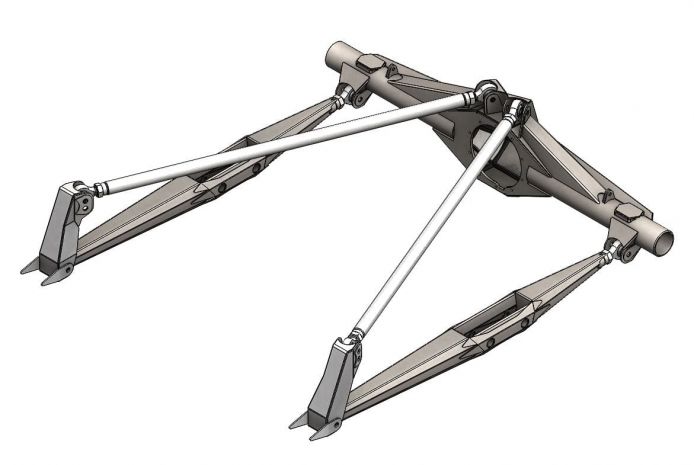

This Rear Suspension assembly comes in a few options (see below) and is designed to be cut from 4130 Chromoly and TIG welded, professional experience is a must for this setup.
***This product is a Digital Asset, you are purchasing the CAD files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
***Due to the complexity of these assemblies a representative from DIY OFFROAD will be reaching out to you personally upon purchase***
Details
Frame mounts:
-2 different style frame mounts are included, see pics.
-3/4 mount holes, 2 position upper mounts
Lower links:
-58" length pivot to pivot.
-1.5" shock mount spacing, extended mounts may be required.
Axle housing:
-Both 3.5" and 4.0" diameter axle tube designs are included.
-Designed for Ford 9" or 10" third members.
-Housing and pinion centered.
-Add your specific fill, drain and vent holes as needed.
Files:
-SolidWorks model
-SolidWorks drawing
-IGES, Parasolid model
-DXF (laser cut) file
-2d, 3d PDF's copies
More Information
| Seller | Matt Fiore |
|---|
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Link Kits (3-link / 4-link, fab or stock housing) |
| Position | Rear suspension |
| Build System | Mild-steel MIG vs 4130 chromoly TIG |
Frequently Asked Questions
These are designed to be cut from 4130 chromoly, and you can have them cut on a CNC plasma, laser, or waterjet. Just keep in mind some of the plates need to be press bent, and this whole setup needs to be TIG welded by someone with real fab experience.
You're buying the digital CAD/DXF cut files, not a physical part. Once you've got the files you take them to a shop or run them yourself to get all the plates cut and bent, then weld the assembly together.
Yep, because of how involved these assemblies are, a rep from DIY OFFROAD will reach out to you personally after you purchase to help get you squared away. This setup really does take professional welding experience, so don't go into it blind.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The TT Rear Suspension Assembly from BajaCustoms is $900.00.
