TT Rear Pivot Box - Stage 2 From Tekk

Rating:

100 % of 100

5 Reviews Add Your Review

$82.00

In stock

SKU

600-JEH-013

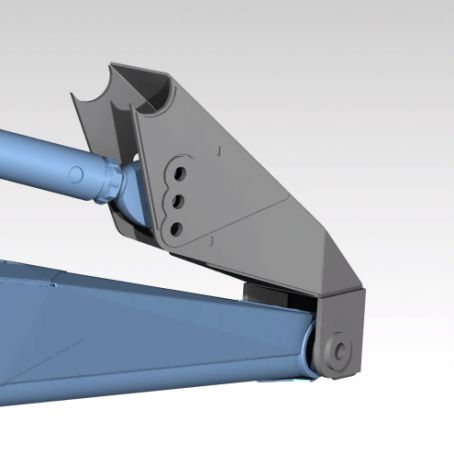

These Trophy Truck Rear Pivot Boxes are designed to be universal in that you can mount them in a variety of different chassis applications. From an all tube floor to the boxed floors also available here on DIY these rear pivot boxes will locate both the lower and upper link arms for your rear suspension. The upper link has three mounting points for adjustment and the ability to work with several different rear end housing tab setups.

This Rear Pivot Box Includes the Fixture cutting files as well.

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Details

These Trophy Truck Rear Pivot Boxes are designed to be universal in that you can mount them in a variety of different chassis applications. From an all tube floor to the boxed floors also available here on DIY these rear pivot boxes will locate both the lower and upper link arms for your rear suspension. The upper link has three mounting points for adjustment and the ability to work with several different rear end housing tab setups.

Lower Arm Mount is designed for ¾” bolt on 3.0625” spread.

Upper Arm Mount is designed for 5/8” bolt on 2.625” spread.

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
