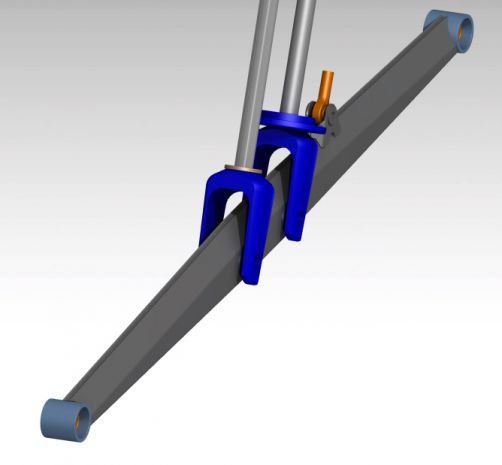

60" TT RACE Clevis Style Link arms with optional Sway Bar Mount (Standard Geometry)
This digital asset does come with optional sway bar mount tabs, these can be placed in several different locations on the arm to accommodate the setup you prefer.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Boxed / Clevis / Tube Link Arms & Trailing Arms |
| Position | Rear suspension |
| Build System | Link suspension (general rod-end / uniball link) |
Frequently Asked Questions
Yep, the arms are designed around 1" uni-ball bearings for both the chassis and rear housing mounts. The clevis shock mounts run 7/8" bearings with cups welded into the arm — those are standard parts off Kartek.com, so you'll just need to source the bearings and uniballs to finish them out.
The optional sway bar mount tabs are included in this digital asset. You can place them in several different spots on the arm depending on the setup you're running, so you've got some flexibility there.
You'll get the DXF cut files to run on a CNC plasma, laser, or waterjet, and some of the plates are meant to be press bent before assembly. If you don't have a press handy, email us and we can recommend a shop to cut and bend them for you.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 60" TT RACE Clevis Style Link arms with optional Sway Bar Mount (Standard Geometry) is $415.00.
This 60" TT RACE Clevis Style Link arms with optional Sway Bar Mount (Standard Geometry) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Clevis Style Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Clevis Style Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Clevis Style Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
