T4 Trophy Truck Rear Pivot - Raised Lower Link Pivot

T4 Trophy Truck Rear Pivot - Raised Lower Link Pivot

Be the first to review this product

$105.00

In stock

SKU

600-JEH-133

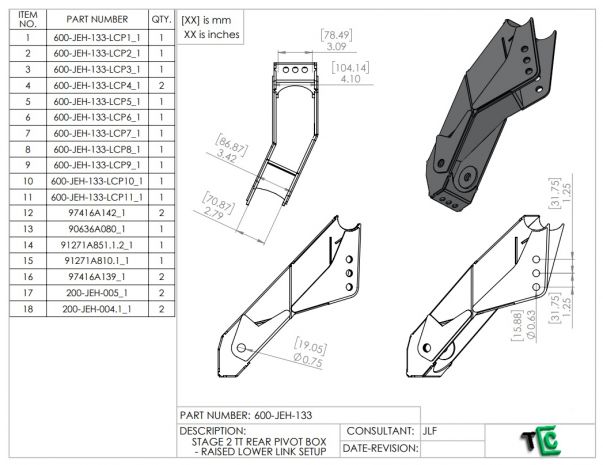

These Trophy Truck Rear Pivot Boxes are designed to be universal in that you can mount them in a variety of different chassis applications. From an all tube floor to the boxed floors also available here on DIY these rear pivot boxes will locate both the lower and upper link arms for your rear suspension. The upper link has three mounting points for adjustment and the ability to work with several different rear end housing tab setups. This Rear Pivot Box Includes the Fixture cutting files as well. ***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Details

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Trophy Truck / Trick Truck (TT)
Part Family	Rear Pivot Boxes
Position	Rear suspension
Build System	Link suspension (general rod-end / uniball link)

Frequently Asked Questions

Will these pivot boxes work with a tube floor or do I need the boxed floor setup?

Both work — these are designed to be universal so you can mount them in an all-tube floor or one of the boxed floors we also carry here on DIY. Either way they'll locate your lower and upper link arms.

Does the file include the fixture or do I have to make my own to weld these up?

You're covered — the fixture cutting files are included right along with the pivot box files, so you can have everything cut on the same plasma, laser, or waterjet run.

Can I adjust the upper link to match my rear end housing tabs?

Yeah, the upper link has three mounting points for adjustment, so it'll work with several different rear end housing tab setups to dial in your link geometry.

How do I get the T4 Trophy Truck Rear Pivot - Raised Lower Link Pivot after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the T4 Trophy Truck Rear Pivot - Raised Lower Link Pivot cost?

The T4 Trophy Truck Rear Pivot - Raised Lower Link Pivot is $105.00.

Who designs the T4 Trophy Truck Rear Pivot - Raised Lower Link Pivot?

This T4 Trophy Truck Rear Pivot - Raised Lower Link Pivot is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Tube Chassis Rear Pivot Boxes?

DIY Off Road has downloadable DXF cut files for Tube Chassis Rear Pivot Boxes plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Tube Chassis Rear Pivot Boxes category, or shoot us an email and we will point you to the right files for your build.

Do you have Race/Play Chassis Components cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Tube Chassis Rear Pivot Boxes, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
