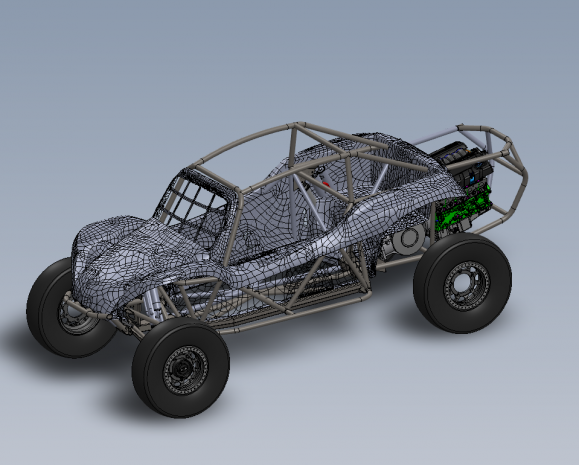

Tube Chassis Manx Style Buggy
Full tube chassis rear engine buggy platform that will fit a Manx body. A arm front suspension and trailing arm rear suspension. Chassis and suspension files included. 105" wheel base, 68" track width (wheel mounting surface to wheel mounting surface).
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
| Seller | armada-engineering.com |
|---|
Frequently Asked Questions
Both are included — you get the full chassis plus the A-arm front and trailing arm rear suspension cut files. It's a complete platform package, all in DXF.
It's designed as a rear engine buggy platform built to fit a Manx body, running a 105" wheelbase and 68" track (wheel mounting surface to surface). If you've got something nonstandard, email us and we'll help you sort out what works for your build.
Yep, these are DXF cutting files you can run on a CNC plasma, laser, or waterjet, then press the plates that need bending and weld it all together. If you need a shop to cut or bend them, email us and we'll point you to one.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Tube Chassis Manx Style Buggy is $1,500.00.
This Tube Chassis Manx Style Buggy is brought to you by Armada Engineering. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Tube Chassis Platforms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Tube Chassis Platforms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Default MuscleCar, including Tube Chassis Platforms, all designed by working fab shops. Browse the Default MuscleCar section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
