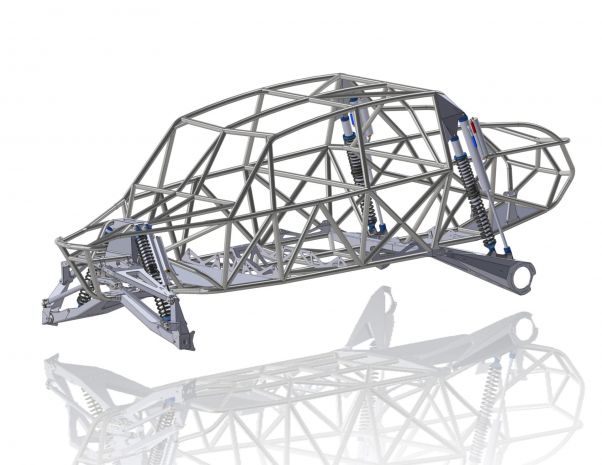

Fullsize Prerunner Buggy Roller Chassis Solid (CAD) Files from Baja Customs

Be the first to review this product

$1,250.00

In stock

SKU

600-BCS-006

Features:
-Tube chassis and plating
-Front suspension includes:
-3 different upper arm designs
-3 different height bulkheads to accomadate various shock brands
-Lite versions of the LCA's, spindle's, and meduim, tall bulkheads
-Rear suspension includes 3 different length trailing arm designs
-Skidplate and floor board
-LS engine and transaxle mounts
-Seat, fuel cell, radiator and foot pedal mounts
-Buggy was originally designed to be SCORE legal with the addition of some B-pillar cross tubes.
-New from the original design, shown in the live pictures, is a boxed rear housing, boxed trailing arms, and upper control arms.

File types:
-SolidWorks models and drawings
-IGES, and E-drawing models
-DXF (laser cut) files
-2d, 3d PDF's copies
-Excel parts list

Details:
Wheelbase: 131"
Trackwidth: 92" (Approximate, depending on hubs and wheels used)
Front Suspension: Upper “J” and lower control arms
Wheel Travel: 23"
12”, 2.0 or 2.5 Coil-over, piggy back or remote reservoir
12”, 2.5 Bypass, piggy back or remote reservoir, tubes positioned to clear coil-over.
Rear Suspension: 934 Mid-bore, Trailing arms
Wheel Travel: 22.5" (Approximate, depending on axles and hubs used)
16”, 2.5 Coil-over, piggy back or remote reservoir, (outlet rotated 90degrees).
18”, 3.0 Bypass, piggy back or remote reservoir, with tubes positioned to clear coil-over.

Extras:
-4.3, 5.3, 5.7, LS1 Engines models
-2D and HD Mendeola models
-934 hub model
-Shock models

***This product is a Digital Asset, you are purchasing the CAD for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	Matt Fiore

Specifications

Platform	Luxury Prerunner / Prerunner
Part Family	Y-Frame / H-Frame / Roller Chassis / Center Assemblies
Build System	Trailing-arm rear

Frequently Asked Questions

Does this come with the actual tube bend specs and the plate DXFs, or just the flat plates?

You get the full package — SolidWorks models and drawings, IGES and E-drawings, the DXF laser cut files for the plating, plus 2D/3D PDFs and an Excel parts list. The tube chassis is modeled too, so you can pull your tube lengths and bends off the CAD and run the plates on your plasma, laser, or waterjet.

Will this work if I'm running a different shock setup than what it's designed around?

Yeah, it's built to be flexible — the front has 3 different height bulkheads to accommodate various shock brands and clears 12" 2.0/2.5 coil-overs or 2.5 bypass, and the rear is set up for 16" 2.5 coil-overs or 18" 3.0 bypass. If you've got something different in mind, email us and we'll see if it'll fit your build.

Is this thing set up for an LS and what transaxle does it use?

It is — there are LS engine and transaxle mounts built in, and it comes with 4.3, 5.3, 5.7, and LS1 engine models plus 2D and HD Mendeola transaxle models. The 934 mid-bore and hub models are included too, so you've got what you need to plan the drivetrain side of the build.

How do I get the Fullsize Prerunner Buggy Roller Chassis Solid (CAD) Files from Baja Customs after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Fullsize Prerunner Buggy Roller Chassis Solid (CAD) Files from Baja Customs cost?

The Fullsize Prerunner Buggy Roller Chassis Solid (CAD) Files from Baja Customs is $1,250.00.

Who designs the Fullsize Prerunner Buggy Roller Chassis Solid (CAD) Files from Baja Customs?

This Fullsize Prerunner Buggy Roller Chassis Solid (CAD) Files from Baja Customs is brought to you by Baja Customs. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Tube Chassis Buggies and Components?

DIY Off Road has downloadable DXF cut files for Tube Chassis Buggies and Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Tube Chassis Buggies and Components category, or shoot us an email and we will point you to the right files for your build.

Do you have Race/Play Chassis Components cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Tube Chassis Buggies and Components, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
