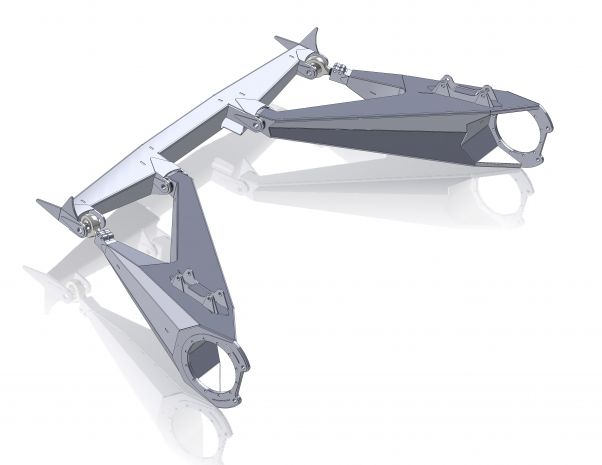

Boxed Buggy Rear 26" Arm Suspension Solid (CAD) Files from Baja Customs

These are boxed trailing arms, so the plates cut flat on your plasma, laser, or waterjet and then get press bent before you weld them up. The file is set up for that, just plan on having a press handy for the bends.

They're designed for 934 mid-bore hubs with 5.25" caliper mounting. If you're running something different, shoot us an email and we'll see if it'll work or if there's another file that fits your build better.

It's a 26" arm setup that comes out to roughly 92" trackwidth and about 22.5" of wheel travel, though both depend on the axles, hubs, and wheels you end up running. After payment you'll get the DXF files to have everything cut and bent.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Boxed Buggy Rear 26" Arm Suspension Solid (CAD) Files from Baja Customs is $400.00.
