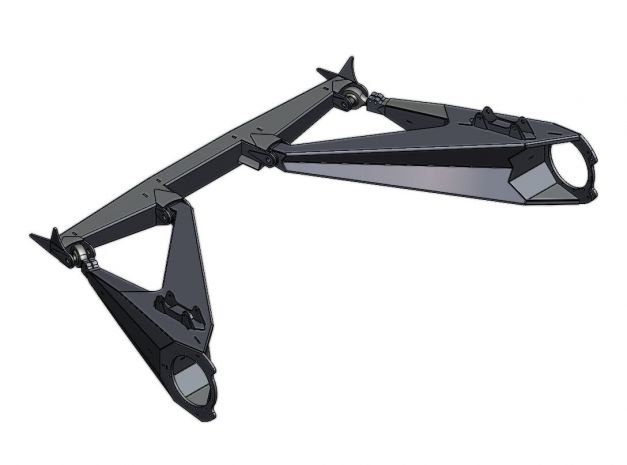

Class 10 / Sandrail Rear Suspension

The hub plates are already drawn for 934 4-piston, 934 6-piston, and PC Micro stub setups, so you've got options right out of the box. Just keep in mind trackwidth lands around 84-86" depending on which hubs and wheels you run.

You get the full package — SolidWorks models and drawings, IGES and E-drawing models, the laser-cut DXFs, plus 2D and 3D PDFs. So if you want to tweak anything before you cut, you've got the native files to work with.

It's designed for roughly 20" of wheel travel, though that'll vary a bit depending on the axles and hubs you end up running. If you're shooting for a specific number, email us and we can talk through your build.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Class 10 / Sandrail Rear Suspension is $400.00.

This Class 10 / Sandrail Rear Suspension is brought to you by Baja Customs. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Tube Chassis Buggies and Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Tube Chassis Buggies and Components category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Tube Chassis Buggies and Components, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
