GMT800 PTF Silverado 1500 99-06 2WD Front End Kit - Plasma Table Friendly
18” wheel travel ,+5” per side boxed upper and lower control arms fabricated spindles
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no/minimal bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Chevy/GMC Silverado/Sierra 1500 GMT800 (99-06) |
|---|---|
| Part Family | Front Bulkhead / Front-End Assemblies (tube chassis front clip) |
| Position | Front suspension |
| Build System | Long-travel (LT) |
Frequently Asked Questions
These are drawn up for the 99-06 GMC/Chevy 1500 2WD only. If you're running a 4x4 shoot us an email and we'll see if there's another file that fits your build.
It's designed as mostly flat plate with no/minimal bends so it's easy to run on a plasma table, but a few plates do get bent on a press. Just follow the WPO (weld procedure/order) so you keep the strength where it counts.

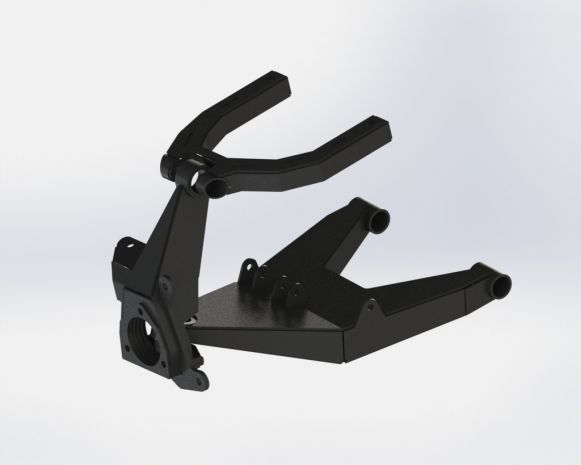

You're getting the DXF cut files for the complete front end kit — boxed upper and lower control arms and fabricated spindles for the 18" travel, +5" per side setup. Remember this is a digital download of the cutting files, so you'll have the plates cut on a plasma, laser, or waterjet and then weld it all together.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The GMT800 PTF Silverado 1500 99-06 2WD Front End Kit - Plasma Table Friendly is $975.00.
This GMT800 PTF Silverado 1500 99-06 2WD Front End Kit - Plasma Table Friendly is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for DBF GMT800 Long Travel Kit - Plasma Table Friendly plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the DBF GMT800 Long Travel Kit - Plasma Table Friendly category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across 99-06 Silverado 1500 GMT800, including DBF GMT800 Long Travel Kit - Plasma Table Friendly, all designed by working fab shops. Browse the 99-06 Silverado 1500 GMT800 section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
