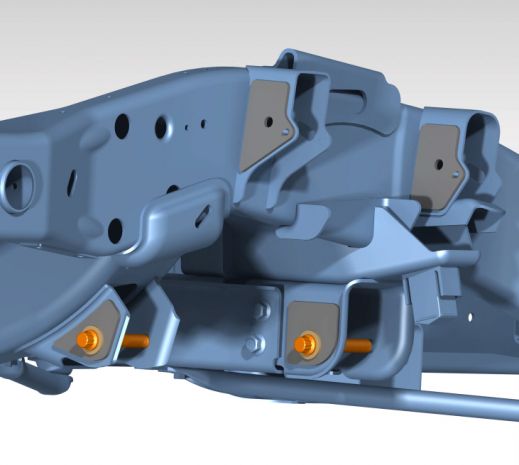

1500 Silverado 99-06 2x4 GMT800 Chassis Pivot Gusset Pack - PTF
Bolt Hole Sizes:
Front Lower Arm - 5/8"
Front Upper Arm - 1/2"
Front Spring - 18mm
Rear Spring/Shackle - 9/16"
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Chevy/GMC Silverado/Sierra 1500 GMT800 (99-06) |
|---|---|
| Part Family | Gusset / Reinforcement Plate Kits |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These files are designed for the 99-06 GMT800 1500 Silverado 2x4 specifically. If you're running a 4x4, shoot us an email and we'll see if we have a file that works for your build.
These are all flat plate, no bends — that's the whole point of the Plasma Table Friendly design. Just cut them on your plasma table and weld them into the chassis after you prep the frame. Make sure you follow the WPO so you keep the strength.
They weld into the chassis at the pivots after you prep the frame — no bolting required. The pack is set up around the stock bolt hole sizes (5/8" front lower arm, 1/2" front upper, 18mm front spring, 9/16" rear spring/shackle), so just have them cut from steel and weld them in.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 1500 Silverado 99-06 2x4 GMT800 Chassis Pivot Gusset Pack - PTF is $12.00.
This 1500 Silverado 99-06 2x4 GMT800 Chassis Pivot Gusset Pack - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Chassis Specific Gusset / Overlay Plates and Tabs plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Chassis Specific Gusset / Overlay Plates and Tabs category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Tabs, Gussets, and Brackets, including Chassis Specific Gusset / Overlay Plates and Tabs, all designed by working fab shops. Browse the Tabs, Gussets, and Brackets section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
