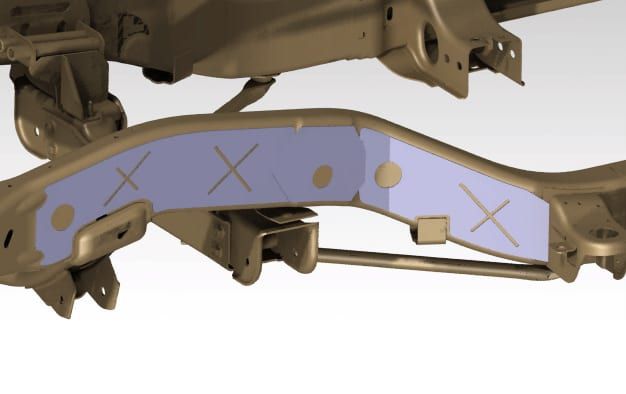

99-06 Silverado 1500 2x4 Front Frame Overlay Plates GMT800
Can be cut from .095, .120, or .190 material.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with no/minimal bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Chevy/GMC Silverado/Sierra 1500 GMT800 (99-06) |
|---|---|
| Part Family | Gusset / Reinforcement Plate Kits |
| Position | Front suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed specifically for the 99-06 Silverado 1500 2x4 front frame section. If you're running a 4x4, shoot us an email and we'll check if we have a file that fits your build.
You can cut these from .095, .120, or .190 material depending on how beefy you want them. Pick the thickness that suits your build and what you're running them through.
These are Plasma Table Friendly (PTF), so they're designed as flat plate with no/minimal bends to keep cutting and assembly easy. Just follow the WPO steps to make sure you keep the strength when you weld them in.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 99-06 Silverado 1500 2x4 Front Frame Overlay Plates GMT800 is $30.00.
This 99-06 Silverado 1500 2x4 Front Frame Overlay Plates GMT800 is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Chassis Specific Gusset / Overlay Plates and Tabs plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Chassis Specific Gusset / Overlay Plates and Tabs category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Tabs, Gussets, and Brackets, including Chassis Specific Gusset / Overlay Plates and Tabs, all designed by working fab shops. Browse the Tabs, Gussets, and Brackets section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
