GMT800 SILVERADO 99-06 1500 FRONT I-BEAM BULKHEAD
Details

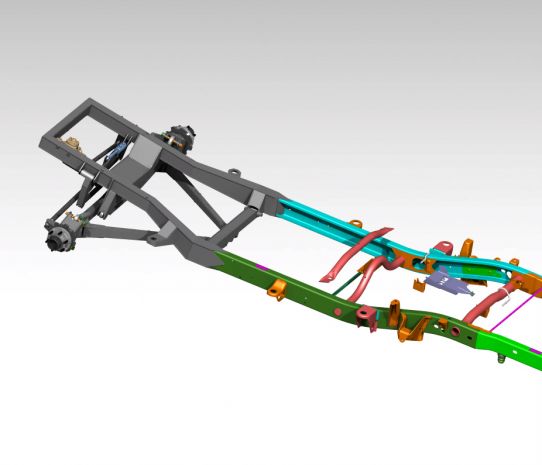

These plasma table friendly bulkheads are designed to graft onto an GMT800 (99-06 SILVERADO 1500) chassis or utilized to start a new one from the ground up. Setup for the Universal Beams from Tekk they provide the perfect starting point with all the hard work figured out for you, the geometry, and the steering. They feature center mounted radius arms along with equal length steering setup from a 4 bolt Sag Box and 4.5” throw ram. The uprights are universal in that they can be mated with either stock D44 components or any of the aftermarket race hub setups (designed for the JEHC INC snout blocks, sold separately under the Fabrication/Hard Parts section of the sire). The entire front end is designed with a 10Deg rake built into it for optimal performance and ground clearance, the rear section of the bulkhead, the radius arm mount is designed to be mounted level in the chassis.
This cutfile pack includes the following: Beams, Radius Arms, Uprights, Steering upright tabs, Swingers, Pitman Arm, Frame/Bulkhead, and Crosslink Cutfiles along with ESAM files for assembly.
After purchase JEHC INC will reach to you to confirm the below options to ensure you get the files per the setup you want to run.
TrackWidth– This setup comes in two different trackwidths, either 88”+ range or 91+” plus range.
Beam Options – We have two different Beam/Upright options based on the tire size you plan on running, for the 37” tires we suggest the 1.25” beams and for anything larger we suggest the 1.5” bearing beams.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Chevy/GMC Silverado/Sierra 1500 GMT800 (99-06) |
|---|---|
| Part Family | Front Bulkhead / Front-End Assemblies (tube chassis front clip) |
| Position | Front suspension |
| Build System | I-beam / Twin I-Beam (TTB) |
Frequently Asked Questions
It's the full pack — beams, radius arms, uprights, steering upright tabs, swingers, pitman arm, frame/bulkhead, and crosslink cutfiles, plus the ESAM files for assembly. It's set up around Tekk's universal beams so the geometry and steering are already figured out for you.
The uprights are universal — they'll mate to stock D44 components or any of the aftermarket race hub setups. They're designed for the JEHC INC snout blocks, which are sold separately under the Fabrication/Hard Parts section.
For 37s we suggest the 1.25" beams, and for anything bigger than that go with the 1.5" bearing beams — so for 40s you'd want the 1.5". After you buy, JEHC INC will reach out to confirm your trackwidth and beam option before sending the files.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The GMT800 SILVERADO 99-06 1500 FRONT I-BEAM BULKHEAD is $750.00.
