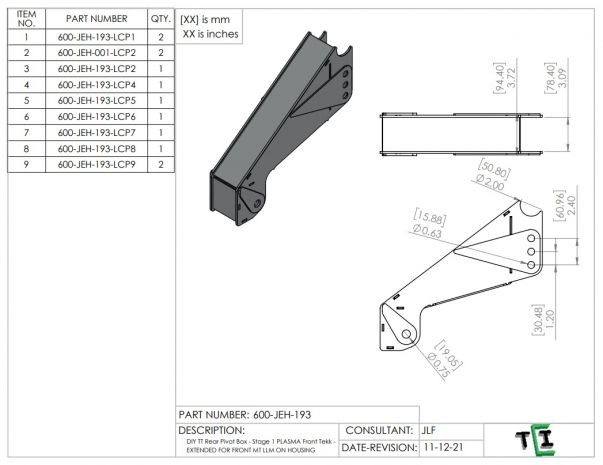

DIY TT Rear Pivot Box - Stage 1 PTF
These DIY Trophy Truck Rear Pivot Boxes are designed to be universal in that you can mount them in a variety of different chassis applications. From an all tube floor to the boxed floors also available here on DIY these rear pivot boxes will locate both the lower and upper link arms for your rear suspension. The upper link has three mounting points for adjustment and the ability to work with several different rear end housing tab setups.
The mounts are designed for 3.06 width spacers, ¾” bolt for the bottom and 5/8” top.
Kartek.com spacers, Lower KTK10034WSS), Upper PRMHMA10058TR.
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Rear Pivot Boxes |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
They're designed to be universal, so you can mount them in a bunch of different setups, from an all-tube floor to the boxed floors we've also got here on DIY. They'll locate both your lower and upper link arms either way.
They're set up for 3.06 width spacers, with a 3/4" bolt on the bottom and 5/8" on top. The Kartek part numbers are KTK10034WSS for the lower and PRMHMA10058TR for the upper if you want to match them up.
You're buying the DXF cut files so you can have the plates cut on a CNC plasma, laser, or waterjet, and these do need to be press bent after cutting. If you need a shop to cut or bend them, shoot us an email and we'll point you to someone.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The DIY TT Rear Pivot Box - Stage 1 PTF is $28.00.
This DIY TT Rear Pivot Box - Stage 1 PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Tube Chassis Rear Pivot Boxes plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Tube Chassis Rear Pivot Boxes category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Tube Chassis Rear Pivot Boxes, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
