JEHC 55" TUBE RACE TT LINK

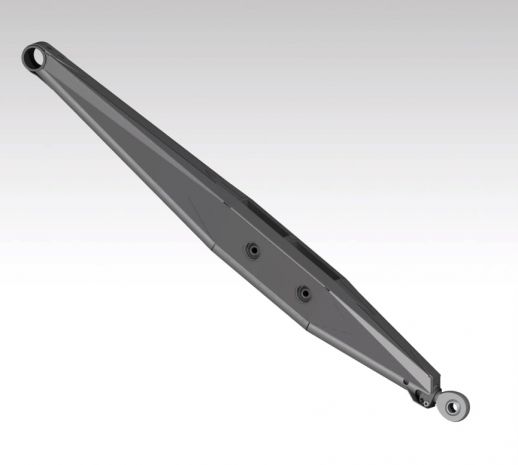

These lower link arm are traditional Trophy Truck style with a 2" main tube as the base structure and wrapped with a series of 4130 Chromoly platework. These arms are designed to ONLY be cut from 4130 and TIG welded, some have MIG welded them but we do NOT suggest cutting these links from mild steel. For a serious race truck these are the links you want.
Fixtures are included for this that bolt to the JEHC 84" fixture table.
Skill level - Expert
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Boxed / Clevis / Tube Link Arms & Trailing Arms |
| Position | Lower (lower control arm / lower link mount) |
| Build System | Mild-steel MIG vs 4130 chromoly TIG |
Frequently Asked Questions
These are designed to ONLY be cut from 4130 chromoly and TIG welded. We've seen guys MIG them, but we don't suggest it, and we definitely don't recommend cutting these from mild steel for a serious race truck.
The fixtures are included with this, and they're set up to bolt to the JEHC 84" fixture table. You'll get the cut files for the link plates plus that fixturing so you can build them straight.
Honestly, no — these are rated expert level. Between the 2" main tube wrapped in 4130 platework and the TIG welding required, this is a build for someone who's done serious chassis work before.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The JEHC 55" TUBE RACE TT LINK is $800.00.
This JEHC 55" TUBE RACE TT LINK is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Trophy Truck Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Trophy Truck Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Trophy Truck Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
