DIY-TT Rear Pivot Box Plasma Table Friendly (NO BENDS) - Stage 1

Be the first to review this product

$28.00

In stock

SKU

600-JEH-021

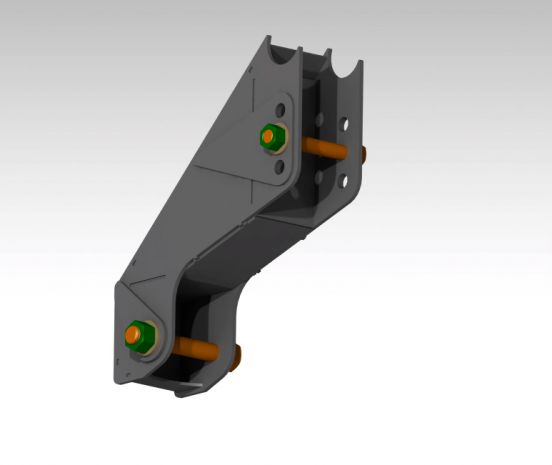

These DIY Trophy Truck Rear Pivot Boxes are designed to be universal in that you can mount them in a variety of different chassis applications. From an all tube floor to the boxed floors also available here on DIY these rear pivot boxes will locate both the lower and upper link arms for your rear suspension. The upper link has three mounting points for adjustment and the ability to work with several different rear end housing tab setups.

The mounts are designed for 3.06 width spacers, ¾” bolt for the bottom and 5/8” top.

Kartek.com spacers, Lower KTK10034WSS), Upper PRMHMA10058TR.

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Details

Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

These DIY Trophy Truck Rear Pivot Boxes are designed to be universal in that you can mount them in a variety of different chassis applications. From an all tube floor to the boxed floors also available here on DIY these rear pivot boxes will locate both the lower and upper link arms for your rear suspension. The upper link has three mounting points for adjustment and the ability to work with several different rear end housing tab setups.

The mounts are designed for 3.06 width spacers, ¾” bolt for the bottom and 5/8” top.

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Trophy Truck / Trick Truck (TT)
Part Family	Rear Pivot Boxes
Position	Rear suspension
Build System	Stage 1 / Stage 2 / Stage 3 complexity tier

Frequently Asked Questions

Are these a true no-bend design, or do I still need a press to fold any of these plates?

This is the Stage 1 plasma-table-friendly version, so it's the NO BENDS layout — you just run the DXF on your plasma, laser, or waterjet and weld it up. No press brake needed for this one.

Will these pivot boxes work with my all-tube floor, or do I need the boxed floor for them?

They're designed to be universal and mount into a variety of chassis setups, from an all-tube floor to the boxed floors we also carry here on DIY. Either way they'll locate both your lower and upper link arms.

What spacers and bolts do these mounts run, and is the upper adjustable?

The mounts are built for 3.06 width spacers with a 3/4" bolt on the bottom and 5/8" up top (Kartek lower KTK10034WSS, upper PRMHMA10058TR). The upper link has three mounting points so you've got adjustment and can work with several different rear end housing tab setups.

How do I get the DIY-TT Rear Pivot Box Plasma Table Friendly (NO BENDS) - Stage 1 after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the DIY-TT Rear Pivot Box Plasma Table Friendly (NO BENDS) - Stage 1 cost?

The DIY-TT Rear Pivot Box Plasma Table Friendly (NO BENDS) - Stage 1 is $28.00.

Who designs the DIY-TT Rear Pivot Box Plasma Table Friendly (NO BENDS) - Stage 1?

This DIY-TT Rear Pivot Box Plasma Table Friendly (NO BENDS) - Stage 1 is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Tube Chassis Rear Pivot Boxes?

DIY Off Road has downloadable DXF cut files for Tube Chassis Rear Pivot Boxes plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Tube Chassis Rear Pivot Boxes category, or shoot us an email and we will point you to the right files for your build.

Do you have Race/Play Chassis Components cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Tube Chassis Rear Pivot Boxes, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
