Baja Customs TT/6100 Front Bulkhead (Stage 3)

Rating:

100 % of 100

5 Reviews Add Your Review

$950.00

In stock

SKU

600-BCS-001

This front bulkhead from Baja Customs is designed to either be the starting point to your new chassis or to graft onto an existing vehicle. Setup for fullsize vehicles (91+) trackwidth this setup is perfect for race trucks like Trophy/Trick/6100 and Luxury Prerunners. Specifications for this setup are below.

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Details

Features;
-Spindle snout mounts for a doubled dana 44 bolt pattern.
-Steering rack mounting for a PPS 2.5 & 2.75 or Howe 2.5 & 3.0, 1.5:1 ratio. Including tie rod brackets.
-Can be adapted to most chassis.
-Designed for King pure race shocks and lengths, but other brands may work.
-Lower arm mount structure maximizes wheel travel without compromising strength.
-A tall and short height bulkhead is included.

Tall bulkhead
Wheel Travel: 28" max

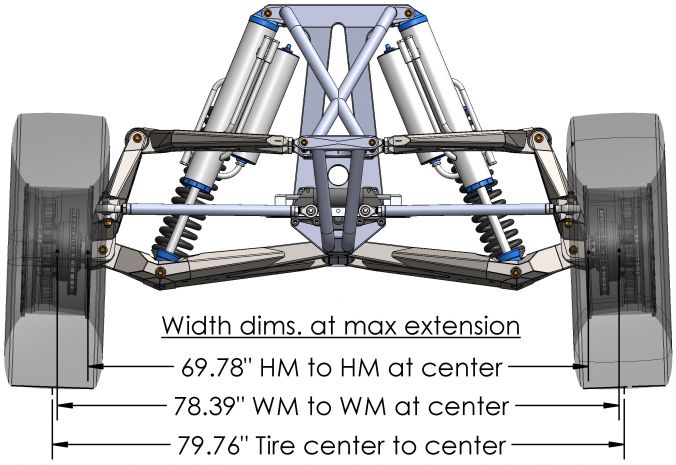

Track width at max extension: 90-92" depending on hub and wheel combinations
Caster: 8.5 degrees (level chassis with rake included)
Rake: 4 degrees
Bulkhead height: 35.5" not including rake angle, 36.5" when including rake angle
Shocks: 18” long. Max diameter combos= 3.0 C/O with 4.0 bypass or 2.5 C/O with 4.5 bypass, (tubes positioned to clear coil-over and upper arm)

Short bulkhead
Wheel Travel: 25.75"
Track width at max extension: 90-92" depending on hub and wheel combinations
Caster: 8.5 degrees (level chassis with rake included)
Rake: 4 degrees
Bulkhead height: 31" not including rake angle, 32" when including rake angle
Shocks: 16” long. Max diameter combos= 3.0 C/O with 4.0 bypass or 2.5 C/O with 4.5 bypass, (tubes positioned to clear coil-over and upper arm)
