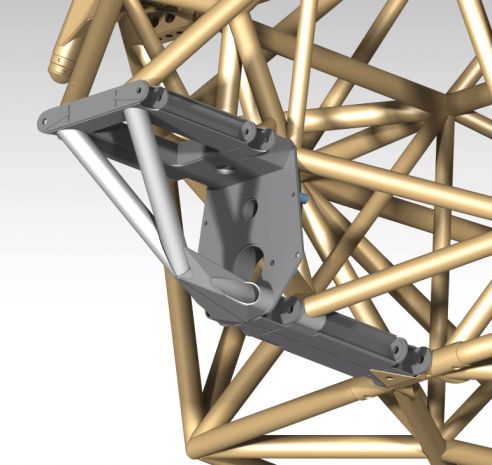

T4 Front Bulkhead Center Section Only
The T4 Bulkhead Center Section is Available in several different configurations including Trophy/Trick Truck, 6100, 7200, and Aussie Spec class. Below are all the specifications for the Trophy Truck/6100 class platforms, the other platforms are dialed down versions of this setup. For questions or inquiries please contact [email protected]
The front suspension of the T4 is designed to be light and strong, precision design for a competitive race platform. Utilizing tube in the components to increase strength and reduce weight while providing a unique style.
Bulkhead – Plate and Tube construction with various thicknesses (1/4”, 3/16”, 1/8”, and .095”) and uses sheetmetal weld washers (can replace with KARTEK machined weld washers) for all bolt hole locations. Setup for the Howe Trophy Truck Rack this bulkhead is self-locating (snap together).
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Front Bulkhead / Front-End Assemblies (tube chassis front clip) |
| Position | Front suspension |
| Build System | Tube chassis / roll cage |
Frequently Asked Questions
Yep, this bulkhead is designed around the Howe Trophy Truck rack and it's self-locating so the plates snap together. If you're running a different rack, shoot Jason an email and we can see what'll work for your setup.
The files are set up with various thicknesses across the plate and tube construction — 1/4", 3/16", 1/8", and .095". Just have the DXFs cut on your plasma, laser, or waterjet and bent where needed.
Yeah, this center section comes in several configurations including Trophy/Trick Truck, 6100, 7200, and Aussie Spec. The specs listed are for the Trophy/6100 platform with the other classes being dialed down versions, so reach out to [email protected] to make sure you get the right files for your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The T4 Front Bulkhead Center Section Only is $1,400.00.
This T4 Front Bulkhead Center Section Only is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Race Truck Tube Chassis Sections / Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Race Truck Tube Chassis Sections / Components category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Race Truck Tube Chassis Sections / Components, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
