Stage 3 RACK TT/Luxury Prerunner/6100 40" Tire Front Bulkhead
This front end is off the T4 Trophy truck from JEH Consulting, the 4th generation race truck platform that is offered in a few variations for different race classes. Setup for either Trophy Truck, Fullsize Luxury Prerunner, and 6100 Heavy (the new 40” tire rules) this front end is the top shelf of the 2WD platforms available from JEHC on the DIY Marketplace.
You can graft this universal front end onto an existing race/prerunner truck or start a new chassis with it.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
***Due to the complexity of these assemblies a representative from JEH Consulting INC will be reaching out to you personally upon purchase***
Bulkhead – Primarily plate construction with 1/8”, 3/16”, and ¼” that utilizes weld washers for all bolt hole locations.

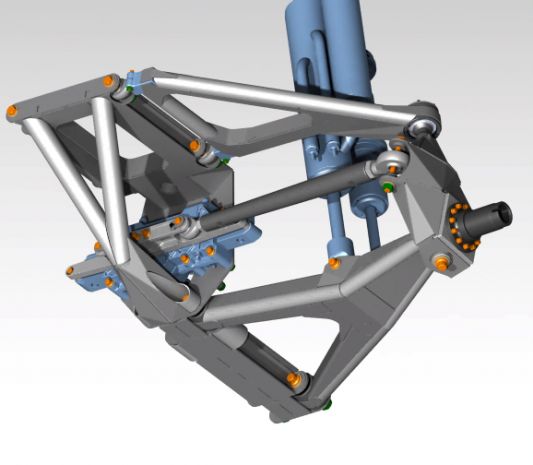

Lower Arm – JEHC Designed these lower arms with a unique style utilizing 1.5” tube sections as the foundation and wrapping that with precision placed platework, locating the shocks while providing a great mixture of weight savings and strength. The interior (chassis) pivots are 1” uni-ball bearings while the upright pivot is a 1.5” Com24 style bearing with options to run a few different bearing cups from various suppliers, even the larger TT bearings from NHBB.
Upper Arm – Keeping with the same style as the lower arms these upper arms utilize 1.5” tube as the base structure that is wrapped in precision placed platework. Utilizing 7/8” Rod ends with Standard Square receivers (bungs) for the chassis side and 1.5” Com24 uni-ball bearings for the upright these arms are setup for race proven durability, or you can run the larger TT style bearings from NHBB.
Upright – Just like the arms the uprights are a unique style designed by Tekk Consulting that feature unique hub faceplates and some serious race proven components like the upper arm spacer, pin, shank setup that welds into the main tube of the upright. All the machine files (IGES, STEP, and PDF) for these pieces are included in the purchase of the cutfiles. The faceplate is a standard 12 bolt pattern so multiple race hub options will work with this setup.
Trackwidth – With standard 2.5 Trophy Truck hubs and wheels/tires this setup will be about 92-93” in trackwidth.
Shocks / Wheel Travel – Designed to run 14” stroke shocks side by side, 3.0” coilover and 4.5” bypass. Wheel travel is optimized at 24” usable, 25” metal to metal.
Steering Setup – This Bulkhead is designed for a Power Steering Solutions Rack, the 2.75 with a 6” throw. (Custom options are Available, please contact Tekk Consulting for Questions.)
Tires and Wheels – This front end is optimized for 39-42” tires.
Bulkhead Rake – This front end comes in either 0 or 3 deg of rake, please note which one you prefer when talking with JEHC about your files.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
***Due to the complexity of these assemblies a representative from JEH Consulting INC will be reaching out to you personally upon purchase***
