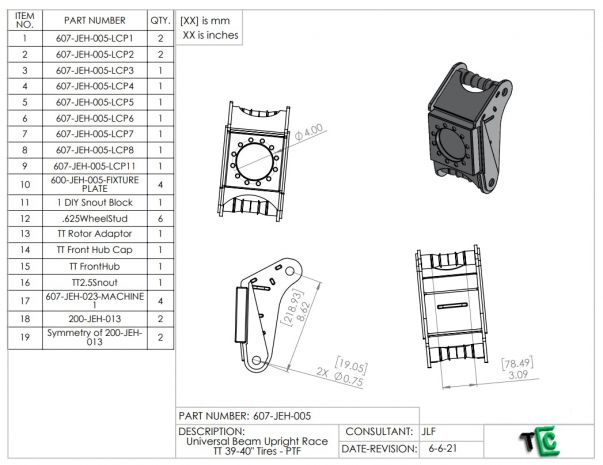

Universal Beam Upright Race TT 39"-40" Tires - PTF
These uprights are designed to work with the 1.25" Rod End Universal Beams from JEHC (008, 011), both the Heim and Uni-ball Beam Setups. They are designed to use a standard 12 bolt Snout Blocks that are machiend from 1" thick 4130 Billet and Sold here on DIY under the Fabrication/Hard Parts Section.
Optimized for 39-40” tires on standard 2.0/2.5 race hubs and are not suggested to be used with smaller tire setups.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Spindles / Uprights (beam, buggy, GM hub) |
| Position | Front suspension |
| Build System | I-beam / Twin I-Beam (TTB) |
Frequently Asked Questions
Yep, they're designed to work with the 1.25" Rod End Universal Beams from JEHC (008, 011), both the Heim and Uni-ball beam setups.
These are optimized for 39-40" tires on standard 2.0/2.5 race hubs and we don't suggest running them with smaller tire setups. If you're on something different, email us and we'll see if another file fits your build better.
These are Plasma Table Friendly — no bends, all flat plate, so you just cut them on your plasma, laser, or waterjet. Just make sure you follow the WPO steps to keep the strength in the component, and note you'll also need the 12-bolt snout blocks sold here under the Fabrication/Hard Parts section.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal Beam Upright Race TT 39"-40" Tires - PTF is $36.00.
This Universal Beam Upright Race TT 39"-40" Tires - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 1.25" Rod End Universal Beam Setups plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 1.25" Rod End Universal Beam Setups category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including 1.25" Rod End Universal Beam Setups, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
