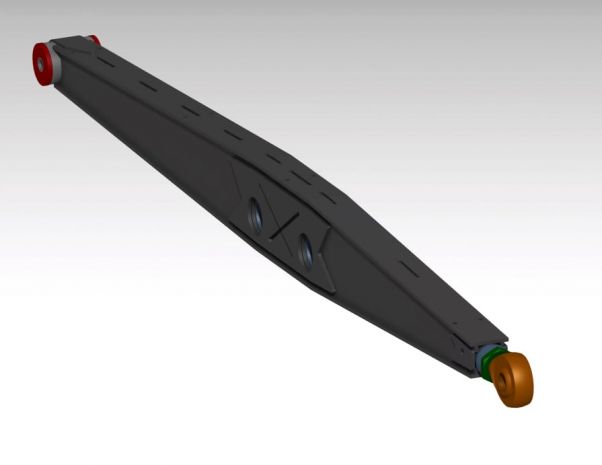

60" TT Clevis Style Link Arm from JEHC
Details
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Boxed / Clevis / Tube Link Arms & Trailing Arms |
| Position | Rear suspension |
| Build System | Coilover + bypass shock |
Frequently Asked Questions
They're designed for both — there are 7/8" uni-ball bearing cups that weld into the arm, one for the coilover and one for the bypass. So you've got mounts for both shocks built right into the link.
These are weld-together arms. You cut the DXF files on your plasma/laser/waterjet, then weld the pieces up — including the uni-ball cups that hold the shocks. They run the Trophy Truck clevis-style geometry.
They were originally designed for a luxury-prerunner K5 Blazer, but they're Trophy Truck geometry clevis-style arms, so it really comes down to your link mounting and shock setup. Email us with what you're building and we'll see if these will fit your geometry or if another file works better.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 60" TT Clevis Style Link Arm from JEHC is $75.00.
This 60" TT Clevis Style Link Arm from JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Clevis Style Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Clevis Style Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Clevis Style Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
