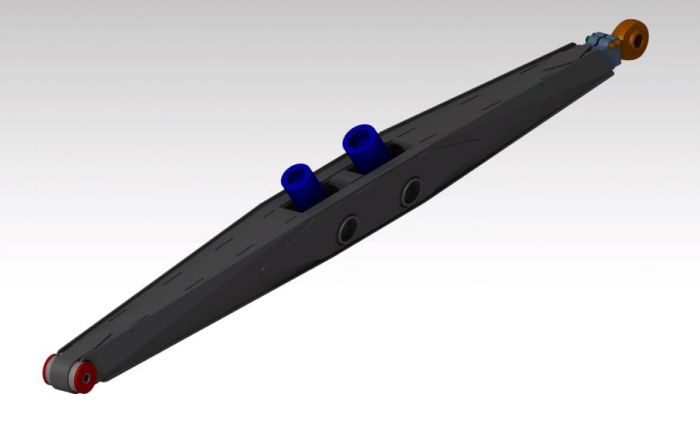

60" TT Boxed Standard Shock Spacing Link Arm from JEHC
Details
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Trophy Truck / Trick Truck (TT) |
|---|---|
| Part Family | Boxed / Clevis / Tube Link Arms & Trailing Arms |
| Position | Chassis-side vs housing-side (panhard / link mounts) |
| Build System | Link suspension (general rod-end / uniball link) |
Frequently Asked Questions
These are designed to be fab-friendly either way — you can run mild steel and MIG weld them, or go Chromoly 4130 and TIG it if you want. Cut from whatever thickness suits your build and welding setup.
You've got options on both ends. The front chassis pivot can run either a bushing assembly or a 1" uni-ball bearing assembly, so it's up to how you want to set it up.
Yep, this is a digital download — you get the DXF cut files to run on your plasma, laser, or waterjet, then box, bend if needed, and weld them up yourself. If you need a shop to have them cut, email us and we'll point you to one.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 60" TT Boxed Standard Shock Spacing Link Arm from JEHC is $75.00.
This 60" TT Boxed Standard Shock Spacing Link Arm from JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Trophy Truck Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Trophy Truck Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Trophy Truck Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
