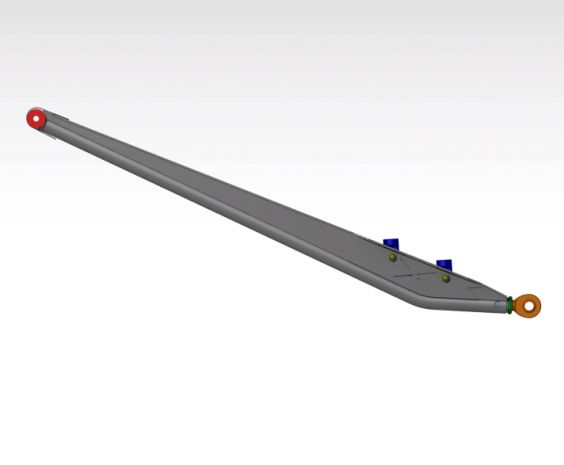

60" Offset Shocks Tube Style Link Arms
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Boxed / Clevis / Tube Link Arms & Trailing Arms |
| Position | Lower (lower control arm / lower link mount) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
All the platework is flat, no bends, so it's real easy to run on a plasma table. The only thing you'll have to make is the 2" diameter tube that welds to the bottom of the arm, and there's included PDF docs to walk you through that.
Yep, this is a digital asset, so you're getting the DXF cut files for the plates plus PDF documents for making the tube. You take the DXFs and have the plates cut on a plasma, laser, or waterjet, then weld it all up with your own 2" tube.
The tube isn't part of the cut files, you'll source your own 2" diameter tube and make it to length. It's an easy build though, and the included PDF docs show you exactly how to put it together.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 60" Offset Shocks Tube Style Link Arms is $48.00.
The 60" Offset Shocks Tube Style Link Arms is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Plasma Table Friendly Traditional Tube Lower Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Plasma Table Friendly Traditional Tube Lower Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Plasma Table Friendly Traditional Tube Lower Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
Reviews
No reviews yet.
