Traditional Trophy Truck Tube Links 60" from Tekk

$800.00

In stock

SKU

605-JEH-116

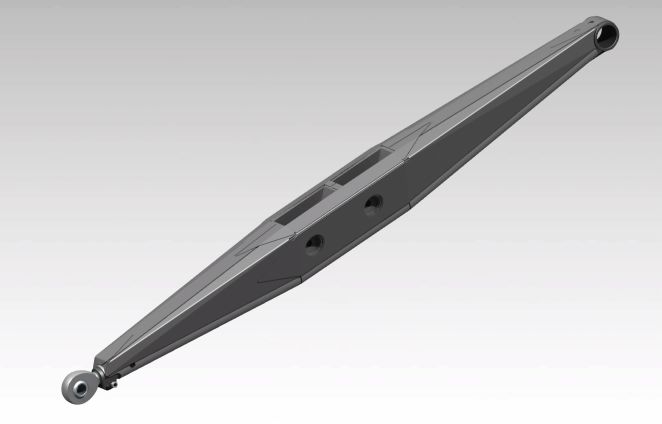

These lower link arm are traditional Trophy Truck style with a 2" main tube as the base structure and wrapped with a series of 4130 Chromoly platework. These arms are designed to ONLY be cut from 4130 and TIG welded, some have MIG welded them but we do NOT suggest cutting these links from mild steel. For a serious race truck these are the links you want.

Fixtures are included for this that bolt to the Tekk 84" fixture table.

Skill level - Expert

***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Details

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Trophy Truck / Trick Truck (TT)
Part Family	Boxed / Clevis / Tube Link Arms & Trailing Arms
Position	Lower (lower control arm / lower link mount)
Build System	Mild-steel MIG vs 4130 chromoly TIG

Frequently Asked Questions

What's actually included in the download, just the plate DXFs or the fixtures too?

You get the cut files for the platework that wraps the 2" main tube, and the fixtures are included as well. Heads up though, those fixtures are built to bolt to the Tekk 84" fixture table.

Can I cut these links from mild steel or do they have to be chromoly?

These are designed to ONLY be cut from 4130 chromoly and TIG welded. Some guys have MIG welded them but we don't recommend it, and we definitely don't suggest mild steel since these are meant for a serious race truck.

Do these need to be bent or are the plates flat once they're cut?

These wrap the 2" main tube and some of the platework needs to be pressed/bent, so you'll want a press in addition to your plasma, laser, or waterjet. This is an expert-level build, so plan accordingly before you run them.

How do I get the Traditional Trophy Truck Tube Links 60" from Tekk after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Traditional Trophy Truck Tube Links 60" from Tekk cost?

The Traditional Trophy Truck Tube Links 60" from Tekk is $800.00.

Who designs the Traditional Trophy Truck Tube Links 60" from Tekk?

This Traditional Trophy Truck Tube Links 60" from Tekk is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Trophy Truck Link Arms?

DIY Off Road has downloadable DXF cut files for Trophy Truck Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Trophy Truck Link Arms category, or shoot us an email and we will point you to the right files for your build.

Do you have Desert Racing / Pre-runner Link Arms cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Trophy Truck Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
