4" Housing Rear Truss from JEHC

Be the first to review this product

$12.00

In stock

SKU

604-JEH-002

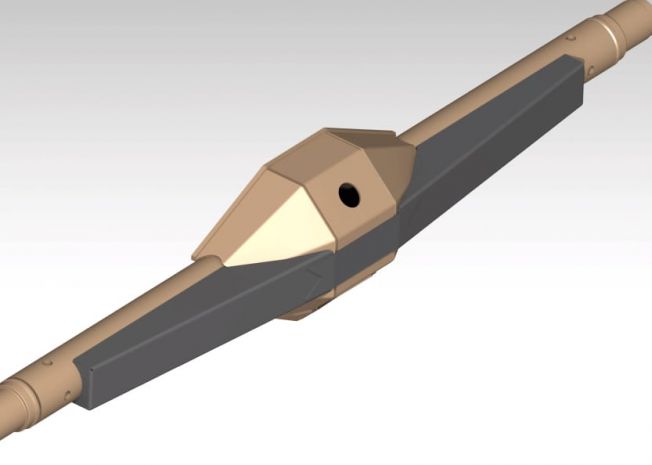

Fabricated Rear end Truss Assembly designed for a 4" housing (604-JEH-001) from JEHC.

Details

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Universal / platform-agnostic
Part Family	Housing Truss / Truss Plate Kits
Position	Rear suspension

Frequently Asked Questions

Does this truss only fit the JEHC 4" housing, or will it work on other 4" housings too?

This one's designed specifically for the JEHC 4" housing (604-JEH-001), so that's the only fitment we can confirm. If you're running a different 4" housing, shoot us an email and we'll see if it'll line up for your build.

What do I actually get when I buy this, just the DXF files to cut myself?

Yep, this is a digital download of the cut files for the truss assembly, nothing physical ships. You run the DXF on your plasma, laser, or waterjet, then weld it up onto your housing.

Do you have a recommendation for what thickness steel to cut these from?

We don't have a material spec listed on this file, so email us and we'll get you the right info from Tekk. We can also point you to a shop to have them cut if you don't have your own table.

How do I get the 4" Housing Rear Truss from JEHC after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 4" Housing Rear Truss from JEHC cost?

The 4" Housing Rear Truss from JEHC is $12.00.

Who designs the 4" Housing Rear Truss from JEHC?

This 4" Housing Rear Truss from JEHC is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for 4" Desert Racing Fabricated Housings and Components from Tekk?

DIY Off Road has downloadable DXF cut files for 4" Desert Racing Fabricated Housings and Components from Tekk plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 4" Desert Racing Fabricated Housings and Components from Tekk category, or shoot us an email and we will point you to the right files for your build.

Do you have Fabricated Housings from JEHC INC cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Fabricated Housings from JEHC INC, including 4" Desert Racing Fabricated Housings and Components from Tekk, all designed by working fab shops. Browse the Fabricated Housings from JEHC INC section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
