60″ Boxed Off-set Shock Mount Links by JEHC

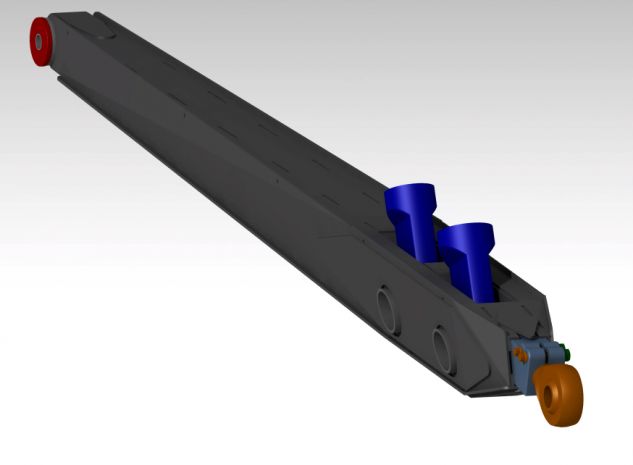

The DXF files are the boxed link arm with the off-set shock mounts built in, designed to be fab-friendly. You pick your pivot setup from there — front can run a bushing or a 1" uni-ball, and the rear can run a race square pinch bolt bung or a standard threaded bung with jam nut.

Either works — they're designed to be run as mild steel MIG welded or chromoly 4130 TIG welded, so you can cut them from whichever your build calls for.

The shock mounts are off-set toward the rear so you can run the shocks as far back as possible, which is why you typically see these on crew-cab trucks. If you're running a different cab and not sure they'll work for your layout, shoot us an email and we'll help you sort it out.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The 60″ Boxed Off-set Shock Mount Links by JEHC is $78.00.

This 60″ Boxed Off-set Shock Mount Links by JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Boxed Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Boxed Link Arms category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Boxed Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
