3 Link Mount 2.75" on 3/4" bolt from JEHC

Be the first to review this product

$12.00

In stock

SKU

604-JEH-007

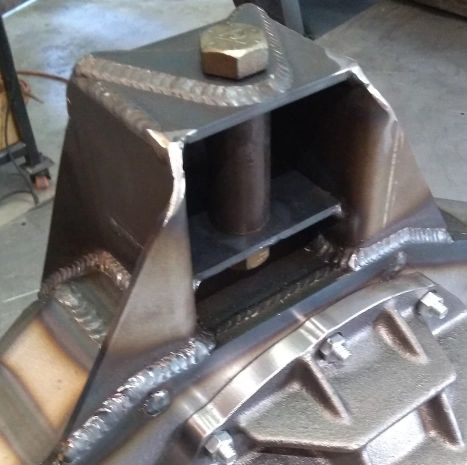

Upper 3 link mounts for JEHC Fabricated Housings, both the 3.5" and 4" center sections (604-JEH-001 and 604-JEH-003). This mount utilizes a 3/4" bolt on a 2.75" spread for standard 1.25" rod ends and spacers. This mount also is designed to clear the filler cap for the center section housing.

Details

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Universal / platform-agnostic
Part Family	Upper / Lower Link Mounts (housing-mounted)
Position	Upper (upper control arm / upper link mount)
Build System	3-link rear

Frequently Asked Questions

Will these link mounts work on both the 3.5" and 4" JEHC housings?

Yep, these are designed to fit both the 3.5" and 4" center sections (604-JEH-001 and 604-JEH-003). They're also cut to clear the filler cap on the center section housing.

What rod ends and bolt setup are these cut for?

They're set up for a 3/4" bolt on a 2.75" spread, so they'll run standard 1.25" rod ends and spacers. Make sure your link hardware matches that before you have them cut.

Do I get DXF files I can run on my own plasma table?

Correct, this is a digital download — you get the DXF cut files after payment to run on a plasma, laser, or waterjet. If you need a shop to cut them for you, email us and we'll point you to one.

How do I get the 3 Link Mount 2.75" on 3/4" bolt from JEHC after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 3 Link Mount 2.75" on 3/4" bolt from JEHC cost?

The 3 Link Mount 2.75" on 3/4" bolt from JEHC is $12.00.

Who designs the 3 Link Mount 2.75" on 3/4" bolt from JEHC?

This 3 Link Mount 2.75" on 3/4" bolt from JEHC is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for 3.5" Desert Racing Fabricated Housings and Components from Tekk?

DIY Off Road has downloadable DXF cut files for 3.5" Desert Racing Fabricated Housings and Components from Tekk plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 3.5" Desert Racing Fabricated Housings and Components from Tekk category, or shoot us an email and we will point you to the right files for your build.

Do you have Fabricated Housings from JEHC INC cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Fabricated Housings from JEHC INC, including 3.5" Desert Racing Fabricated Housings and Components from Tekk, all designed by working fab shops. Browse the Fabricated Housings from JEHC INC section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
