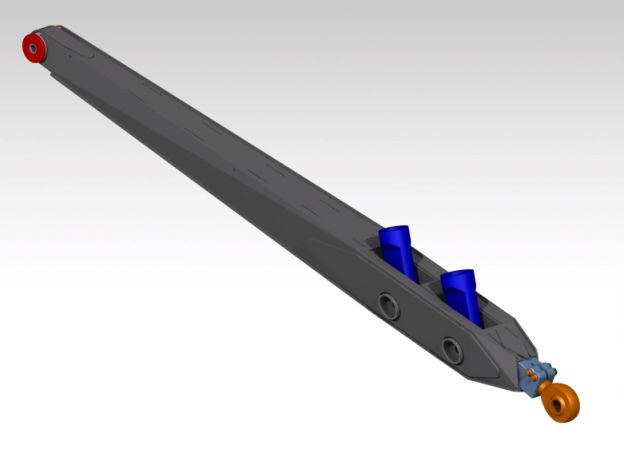

55" Boxed Off-set Shock Mount Links by JEHC
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Boxed / Clevis / Tube Link Arms & Trailing Arms |
| Position | Chassis-side vs housing-side (panhard / link mounts) |
| Build System | Link suspension (general rod-end / uniball link) |
Frequently Asked Questions
Either works. They're designed to be fabrication friendly, so you can run mild steel and MIG weld them, or step up to 4130 chromoly and TIG weld it for your build.
The front (chassis) pivot can run a bushing assembly or a 1" uni-ball bearing assembly. On the rear (housing side) you've got the choice of a race square pinch bolt bung or a standard threaded bung with a jam nut.
The shock mounts are off-set toward the rear of the link arm so you can mount the shocks as far back as possible. You'll typically see this setup on crew-cab trucks, and they're a solid starting point for a linked truck project even if you're newer to it.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 55" Boxed Off-set Shock Mount Links by JEHC is $70.00.
This 55" Boxed Off-set Shock Mount Links by JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Boxed Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Boxed Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Boxed Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
Reviews
No reviews yet.
