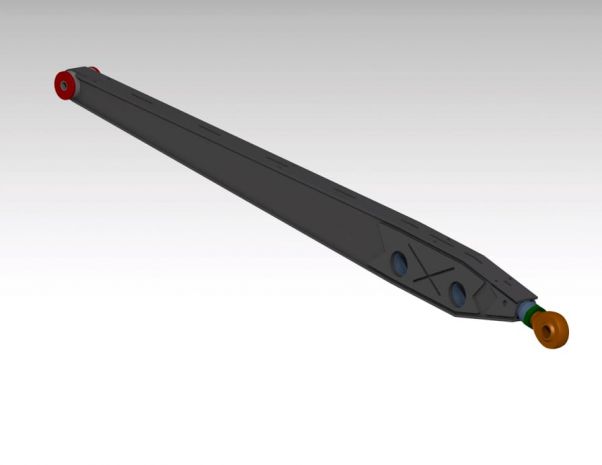

55" Clevis Style Offset Shock Mount Link Arm from JEHC

What thickness and material should I cut these link arms from for my prerunner?

The files are designed as clevis-style link arms that are lighter and easier to fab than traditional boxed arms. We don't spec a set thickness in the file itself, so if you want a recommendation for your build shoot us an email and we'll point you in the right direction.

Do these come set up for both the coilover and the bypass, or do I need to add the shock cups myself?

They're built for the clevis style mounting with two 7/8" uni-ball bearing cups that weld into the arm — one for the coilover and one for the bypass. You'll weld the cups in as part of the fab.

These were made for a K5 Blazer, will they work on my truck or buggy too?

Yep, these were originally designed for a King Shocks luxury-prerunner K5 Blazer. Since link arm geometry varies build to build, email us with what you're running and we'll see if these or another file works for your setup.

How do I get the 55" Clevis Style Offset Shock Mount Link Arm from JEHC after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 55" Clevis Style Offset Shock Mount Link Arm from JEHC cost?

The 55" Clevis Style Offset Shock Mount Link Arm from JEHC is $70.00.

Who designs the 55" Clevis Style Offset Shock Mount Link Arm from JEHC?

This 55" Clevis Style Offset Shock Mount Link Arm from JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Clevis Style Link Arms?

DIY Off Road has downloadable DXF cut files for Clevis Style Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Clevis Style Link Arms category, or shoot us an email and we will point you to the right files for your build.

Do you have Desert Racing / Pre-runner Link Arms cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Clevis Style Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
