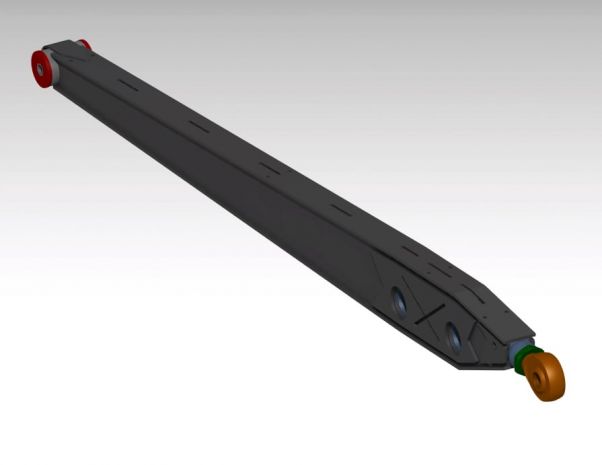

60" Clevis Style Off-Set Link Arms from JEHC
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
These are DXF cut files for the clevis link arms themselves — you'd run them on a plasma, laser, or waterjet and weld up the arm. The shocks mount on 7/8" uniball bearing cups that weld into the arm, one for the coil-over and one for the bypass, so plan on sourcing those cups for your build.
They were originally designed for a King Shocks luxury-prerunner K5 Blazer, so that's the confirmed application. If you're running a different chassis, shoot us an email with your setup and we can see if these or another link arm file will work for what you're building.
These clevis style arms are lighter and easier to fabricate than traditional boxed link arms, which also makes them cheaper to cut. The clevis setup lets the shocks mount around the link arm instead of needing a bunch of boxing work.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 60" Clevis Style Off-Set Link Arms from JEHC is $78.00.
This 60" Clevis Style Off-Set Link Arms from JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Clevis Style Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Clevis Style Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Clevis Style Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
