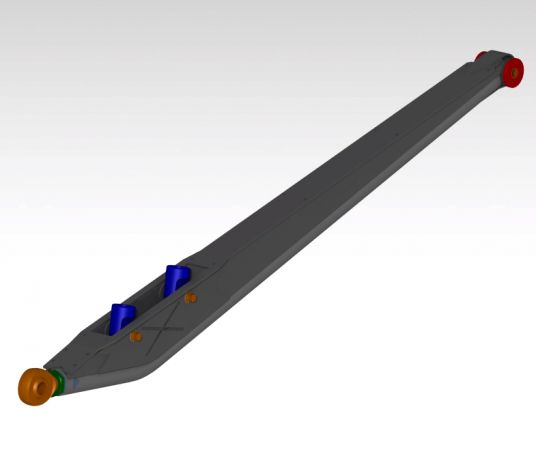

55" Offset Shocks Tube Style Lower Link Arm
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Boxed / Clevis / Tube Link Arms & Trailing Arms |
| Position | Lower (lower control arm / lower link mount) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
All the platework is flat, no bends, so it's super easy to run on a plasma table. The only thing you'll fab yourself is the 2" diameter tube that welds to the bottom of the arm, and there's a PDF included that walks you through that.
Yep, you're buying the digital cut files (DXF) for the plates so you can have them cut on a CNC plasma, laser, or waterjet. You also get PDF docs that cover making the 2" tube that welds onto the bottom of the arm.
You'll supply and make the 2" diameter tube that welds to the bottom of the arm — the files are for the flat plate parts. The included PDFs make building that tube section straightforward.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 55" Offset Shocks Tube Style Lower Link Arm is $40.00.
This 55" Offset Shocks Tube Style Lower Link Arm is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Plasma Table Friendly Traditional Tube Lower Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Plasma Table Friendly Traditional Tube Lower Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Plasma Table Friendly Traditional Tube Lower Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
