48" Boxed Standard Shock Spacing Link Arm from JEHC

Be the first to review this product

$65.00

In stock

SKU

605-JEH-001

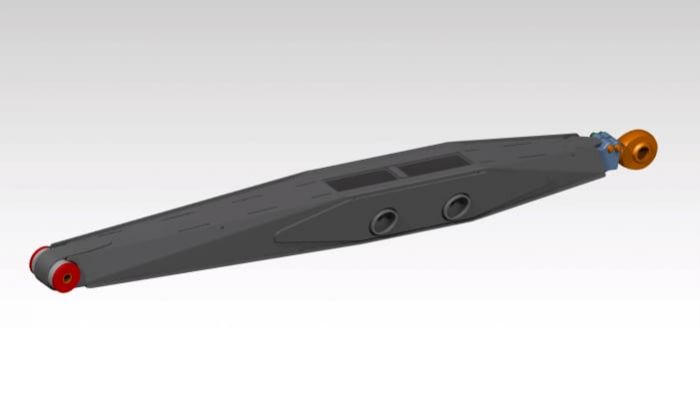

These 48" Boxed Link arms are the perfect start to a linked truck project, even for the beginner. They are designed to be fabrication friendly with several options, from mild steel MIG welded to Chromoly 4130 TIG welded. You also have the option of running various front and rear pivot choices, the front (chassis) pivot can run a bushing assembly or a 1" uni-bearing assembly. The rear pivot (housing side) can run either a race square pinch bolt bung or a standard threaded bung with jam nut.

Details

These 48" Boxed Link arms are the perfect start to a linked truck project, even for the beginner. They are designed to be fabrication friendly with several options, from mild steel MIG welded to Chromoly 4130 TIG welded. You also have the option of running various front and rear pivot choices, the front (chassis) pivot can run a bushing assembly or a 1" uni-ball bearing assembly. The rear pivot (housing side) can run either a race square pinch bolt bung or a standard threaded bung with jam nut.

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Luxury Prerunner / Prerunner
Part Family	Boxed / Clevis / Tube Link Arms & Trailing Arms
Position	Chassis-side vs housing-side (panhard / link mounts)
Build System	Link suspension (general rod-end / uniball link)

Frequently Asked Questions

Are these cut files good for both mild steel MIG and 4130 chromoly, or do I need to pick one?

Same files work either way — you can run them mild steel and MIG weld, or step up to 4130 chromoly and TIG weld. It's up to how you want to build your truck.

Can I run a uniball up front and a threaded bung out back with these, or am I locked into one setup?

You've got options on both ends. The front chassis pivot can take a bushing assembly or a 1" uni-bearing, and the rear housing side can run a race square pinch bolt bung or a standard threaded bung with jam nut.

Do these come as DXF files I can just run on my plasma table, or is it a physical part?

It's a digital download — you get the DXF cut files after payment to run on your plasma, laser, or waterjet. If you need a shop to cut or bend them for you, email us and we'll point you to someone.

How do I get the 48" Boxed Standard Shock Spacing Link Arm from JEHC after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the 48" Boxed Standard Shock Spacing Link Arm from JEHC cost?

The 48" Boxed Standard Shock Spacing Link Arm from JEHC is $65.00.

Who designs the 48" Boxed Standard Shock Spacing Link Arm from JEHC?

This 48" Boxed Standard Shock Spacing Link Arm from JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Boxed Link Arms?

DIY Off Road has downloadable DXF cut files for Boxed Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Boxed Link Arms category, or shoot us an email and we will point you to the right files for your build.

Do you have Desert Racing / Pre-runner Link Arms cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Boxed Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
