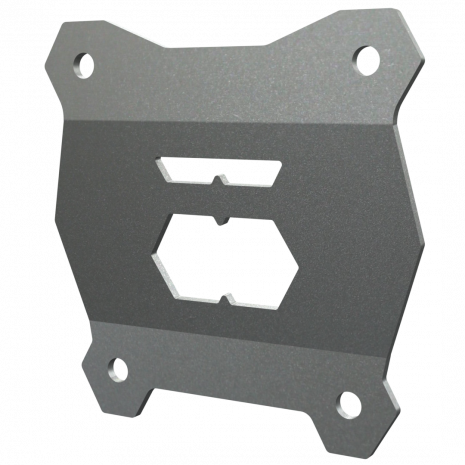

14-16 XP1000 Radius Rod Plate Style 4
This Rear Radius Arm Box is designed to be cut on plasma tables or laser tables with easy assembly and fabrication. IT provides added support for the rear radius rods and is considered one of the first upgrades to any RZR.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
This Rear Radius Arm Box is designed to be cut on plasma tables or laser tables with easy assembly and fabrication. IT provides added support for the rear radius rods and is considered one of the first upgrades to any RZR.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
These radius arm box files are confirmed for the 14-16 XP1000, so your 2014 is covered. If you've got a different year or model, shoot us an email and we'll see if another file works for your build.
This is a radius arm box, so the plates are designed to be cut and then bent on a press before you assemble and weld it together. It's set up for easy fabrication once you've got the parts cut.
Yep, these are made to be cut on CNC plasma, laser, or waterjet, so your plasma table will handle them just fine. If you don't have a way to cut or bend them, email us and we'll point you to a shop that can.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 14-16 XP1000 Radius Rod Plate Style 4 is $100.00.
This 14-16 XP1000 Radius Rod Plate Style 4 is brought to you by CRD. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for UTV plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the UTV category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
