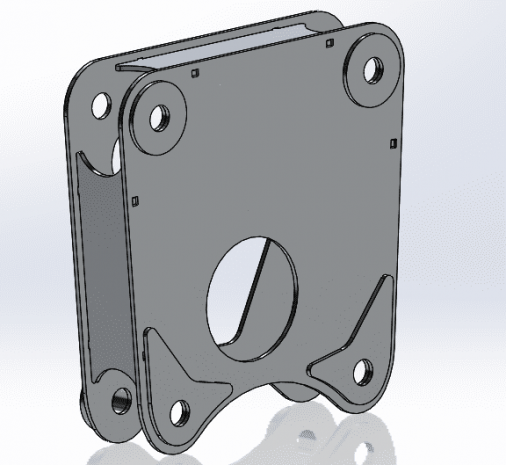

14+ RZR Turbo 1000 Rear Radius Rod Plate (Plasma Table Friendly) from Master Fab
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | Brian Harris |
|---|
Specifications
| Platform | Polaris RZR (XP1000 / Turbo / Turbo S / Pro XP / ProR) |
|---|---|
| Part Family | UTV Control / Trailing Arms & Cage Design Packs |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed for the 14+ RZR Turbo 1000 rear radius rods. If you've got a different model, shoot us an email and we'll see if another file works for your build.
These are Plasma Table Friendly, so it's mostly or all flat plate with little to no bends - easy to cut and assemble on a plasma table. Just make sure you follow the WPO steps so you keep the strength in the part.
You're getting the digital cut files (DXF) or CAD files - no physical part ships. Run them on your plasma, laser, or waterjet, then assemble and weld them in. If you don't have a table, email us and we can recommend a shop to cut them for you.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 14+ RZR Turbo 1000 Rear Radius Rod Plate (Plasma Table Friendly) from Master Fab is $32.00.
This 14+ RZR Turbo 1000 Rear Radius Rod Plate (Plasma Table Friendly) from Master Fab is brought to you by Master Fab. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for UTV plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the UTV category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
