14-16 XP1000 Radius Rod Plate Style 3

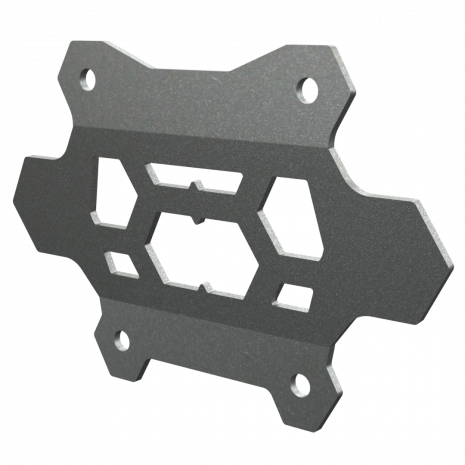

This Rear Radius Arm Box is designed to be cut on plasma tables or laser tables with easy assembly and fabrication. IT provides added support for the rear radius rods and is considered one of the first upgrades to any RZR.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Details
This Rear Radius Arm Box is designed to be cut on plasma tables or laser tables with easy assembly and fabrication. IT provides added support for the rear radius rods and is considered one of the first upgrades to any RZR.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Polaris RZR (XP1000 / Turbo / Turbo S / Pro XP / ProR) |
|---|---|
| Part Family | UTV Control / Trailing Arms & Cage Design Packs |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These files are designed for the 14-16 XP1000. If you're running a different year, shoot us an email and we'll check whether another file lines up with your machine before you buy.
You're getting the DXF cut files (or CAD/solid files) so you can have them cut on a plasma, laser, or waterjet. This is a box-style radius arm setup, so a few of the plates do get press bent during assembly before you weld it all up.
It's a weld-in box that adds support for the rear radius rods, which is why it's one of the first upgrades guys do to these RZRs. If you don't have a way to cut or bend the parts, email us and we'll point you to a shop that can run them for you.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 14-16 XP1000 Radius Rod Plate Style 3 is $100.00.
This 14-16 XP1000 Radius Rod Plate Style 3 is brought to you by CRD. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for UTV plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the UTV category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
