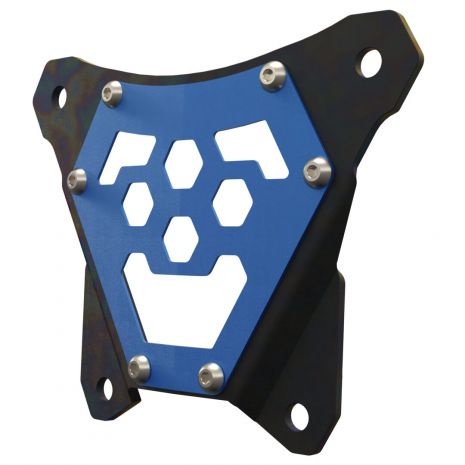

2017+ 1000XP & Turbo Rear Radius Rod Plate
This Rear Radius Arm Box is designed to be cut on plasma tables or laser tables with easy assembly and fabrication. IT provides added support for the rear radius rods and is considered one of the first upgrades to any RZR.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Details
This Rear Radius Arm Box is designed to be cut on plasma tables or laser tables with easy assembly and fabrication. IT provides added support for the rear radius rods and is considered one of the first upgrades to any RZR.
Check My Latest On IG
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Polaris RZR (XP1000 / Turbo / Turbo S / Pro XP / ProR) |
|---|---|
| Part Family | UTV Control / Trailing Arms & Cage Design Packs |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These radius rod plate files are designed for the 2017+ 1000XP and Turbo, so you're covered on both. If you're on a different model or year, shoot us an email and we'll see if we've got a file that works for your build.
You can cut these on a CNC plasma, laser, or waterjet, and they're designed for easy assembly. A couple of the plates do get bent on a press, so you'll want a brake or press handy before you weld it all into the rear.
This is a digital asset, so you're getting the DXF cut files (or CAD/solid files) for the radius rod box, not a physical part. After payment you download the files and have the plates cut wherever you like, then assemble and weld them into your RZR.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 2017+ 1000XP & Turbo Rear Radius Rod Plate is $30.00.
This 2017+ 1000XP & Turbo Rear Radius Rod Plate is brought to you by CRD. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for UTV plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the UTV category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
