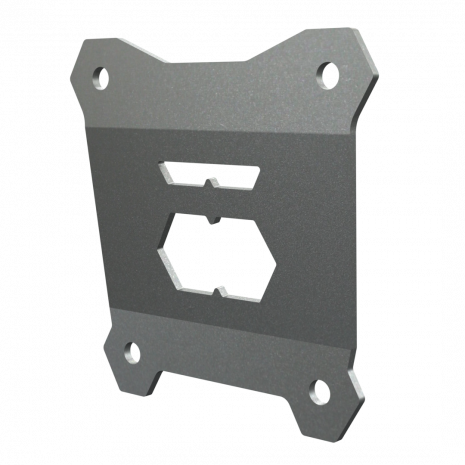

14-16 XP1000 Radius Rod Plate Style 2
This Rear Radius Arm Box is designed to be cut on plasma tables or laser tables with easy assembly and fabrication. IT provides added support for the rear radius rods and is considered one of the first upgrades to any RZR.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Details
This Rear Radius Arm Box is designed to be cut on plasma tables or laser tables with easy assembly and fabrication. IT provides added support for the rear radius rods and is considered one of the first upgrades to any RZR.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Polaris RZR (XP1000 / Turbo / Turbo S / Pro XP / ProR) |
|---|---|
| Part Family | UTV Control / Trailing Arms & Cage Design Packs |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These files are designed for the 14-16 XP1000, so that's what we can confirm them for. If you're running a different year, shoot us an email and we'll see if another file lines up with your build.
It's a radius arm box, so the plates get cut and then bent on a press before you weld it together for the added support. The files are set up for plasma, laser, or waterjet, then bend and weld in.
You're buying the digital DXF cut files (or CAD solids) for the radius arm box plates — no physical parts ship. You run them on a CNC plasma, laser, or waterjet table, and if you need a shop to cut them, email us for a recommendation.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 14-16 XP1000 Radius Rod Plate Style 2 is $100.00.
This 14-16 XP1000 Radius Rod Plate Style 2 is brought to you by CRD. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for UTV plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the UTV category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
