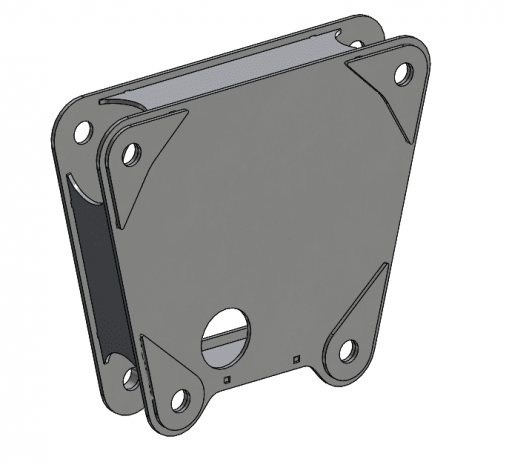

18-20 RZR Turbo S Rear Radius Rod Plate (Plasma Table Friendly) from Master Fab
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | MasterFab |
|---|
Specifications
| Platform | Polaris RZR (XP1000 / Turbo / Turbo S / Pro XP / ProR) |
|---|---|
| Part Family | UTV Control / Trailing Arms & Cage Design Packs |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These files are designed for the 18-20 RZR Turbo S rear radius rods. If you're running a different model or year, shoot us an email and we'll see if another file works for your build.
It's Plasma Table Friendly, so it's designed with little to no bends — mostly flat plate that's easy to cut and assemble. Just follow the WPO steps to keep the strength right when you weld it together.
This is a digital asset, so you're getting the DXF cut files (or CAD) to have cut on your CNC plasma, laser, or waterjet. Nothing physical ships — you cut and weld these into your RZR yourself.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 18-20 RZR Turbo S Rear Radius Rod Plate (Plasma Table Friendly) from Master Fab is $32.00.
This 18-20 RZR Turbo S Rear Radius Rod Plate (Plasma Table Friendly) from Master Fab is brought to you by Master Fab. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for UTV plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the UTV category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
