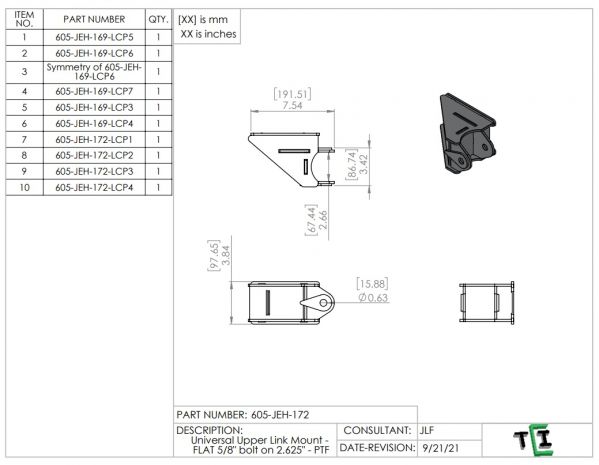

Universal Upper Link Mount - FLAT 5/8" bolt on 2.625" - PTF

These are PTF (plasma table friendly), so they're designed with little to no bends — mostly flat plate to keep cutting and assembly easy. Just follow the WPO (weld procedure) to make sure you keep the strength when you weld them up.

These are set up for a 5/8" bolt with a 2.625" width, so make sure your link hardware matches that spacing. If you need a different bolt size or width, shoot us an email and we'll see if another file fits your build.

They're universal and designed to mount to the side of just about any frame rail for a variety of link suspension setups, so they should work across most builds. You're buying the DXF/CAD cut files to run on your plasma, laser, or waterjet, then weld them in following the WPO.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Universal Upper Link Mount - FLAT 5/8" bolt on 2.625" - PTF is $12.00.

This Universal Upper Link Mount - FLAT 5/8" bolt on 2.625" - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Upper link Chassis mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Upper link Chassis mounts category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Link Suspension Components, including Upper link Chassis mounts, all designed by working fab shops. Browse the Link Suspension Components section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
