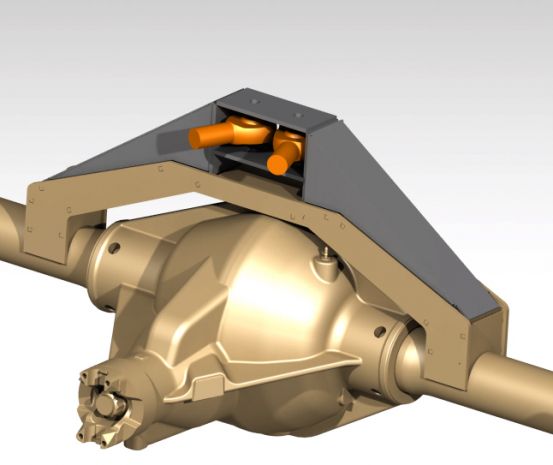

Universal Truss Upper 4 Link (Vertical) - Plasma Table Friendly
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
This 3 Link Mount is designed for the Universal Heavy Duty Truss, it may fit others but its designed to complement the trusses that fit 3”, 3.25”, and 3.5” housing tubes. Setup for a ¾” bolt on a 1.25” rod end with 2.75” tall spacers this mount is also Plasma Table Friendly.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Upper / Lower Link Mounts (housing-mounted) |
| Position | Upper (upper control arm / upper link mount) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are plasma table friendly, so it's all flat plate with no bends to fool with. Just follow the WPO steps when you assemble so you keep the strength in the part.
Yep, it's designed to complement the Universal Heavy Duty Truss and works with trusses that fit 3", 3.25", and 3.5" housing tubes. It may fit others too, but those are the ones it's set up for.
It's set up for a 3/4" bolt on a 1.25" rod end with 2.75" tall spacers. Keep that in mind when you spec out your link hardware.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal Truss Upper 4 Link (Vertical) - Plasma Table Friendly is $12.00.
This Universal Truss Upper 4 Link (Vertical) - Plasma Table Friendly is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 10 Bolt (GMT800) Rear End Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 10 Bolt (GMT800) Rear End Components category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across 99-06 Silverado 1500 GMT800, including 10 Bolt (GMT800) Rear End Components, all designed by working fab shops. Browse the 99-06 Silverado 1500 GMT800 section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
