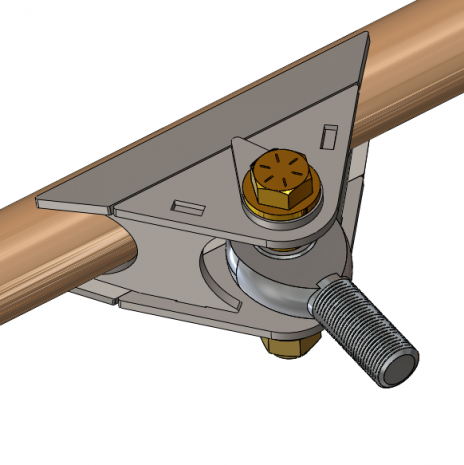

SINGLE VERTICAL BOLT LINK MOUNT - 1.75" TUBE - 5/8" BOLT - PTF
Designed by Tekk Consulting LLC
***These products are Digital Assets. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Triangulated / Single / Vertical Link Pivot Mounts (chassis tube weld-on) |
| Position | Chassis-side vs housing-side (panhard / link mounts) |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These are designed to weld to round tubing sized for 1.75" tube, so the file gives you the radius to cradle the tube for a clean weld joint. Just run the DXF on your plasma table and they'll match up to your tube.
They're designed to be cut out of 3/16" material, and they're plasma table friendly with no bends — all flat plate, so any CNC plasma, laser, or waterjet will run them fine. Just follow the WPO when you weld them up to keep the strength.
These fit up to a 0.875" rod end and are set up for a 5/8" bolt, with the holes already in the DXF so you cut everything in one shot. They're also MIG-friendly with corner welds so they're easy to weld into your chassis.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The SINGLE VERTICAL BOLT LINK MOUNT - 1.75" TUBE - 5/8" BOLT - PTF is $9.00.
The SINGLE VERTICAL BOLT LINK MOUNT - 1.75" TUBE - 5/8" BOLT - PTF is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 7/8" Rod End Vertical link Mount - PTF plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 7/8" Rod End Vertical link Mount - PTF category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Tube Chassis Link Mounts, including 7/8" Rod End Vertical link Mount - PTF, all designed by working fab shops. Browse the Tube Chassis Link Mounts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
