Stage 2 TRUCK Bulkhead - RACK - from JEHC

Rating:

93 % of 100

6 Reviews Add Your Review

$2,400.00

In stock

SKU

600-JEH-S2 Bulkhead

This bulkhead assembly comes in a variety of options (see below) and is designed to be cut from 4130 Chromoly and TIG welded, although some have MIG welded them in the past.

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

***Due to the complexity of these assemblies a representative from JEH Consulting INC will be reaching out to you personally upon purchase***

Details

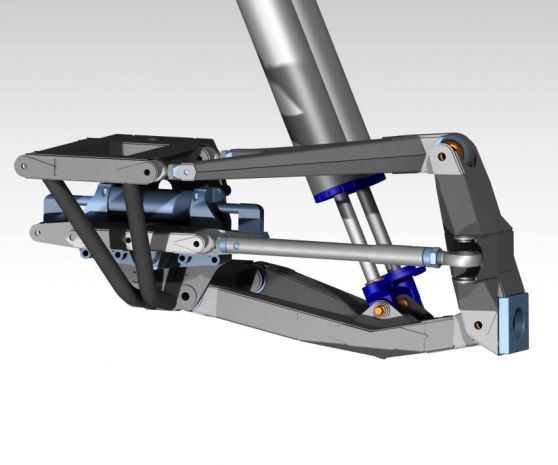

The Stage 2 Bulkhead is the perfect starting point for your next tube chassis project. From race trucks to luxury prerunners the JEHC Platforms are designed to be fabrication friendly, taking the guess work out of complex suspension setup and geometry.

Stage 2 refers to the style of the components in this assembly, everything in this Bulkhead Package is designed to be cut from 4130 Chromoly and TIG welded, some have MIG welded them. These components are lighter and stronger than Stage 1 components.

All of the Arms, Uprights, and Bulkhead is designed with fixtures (included) so that you can fabricate everything professionally from the start.

This Bulkhead is offered in several different options, After the consultation with JEHC INC they will organize all your files and send them over, or send them directly to a laser house on your behalf.

Multiple Trackwidth and WMS measurements available.

Wheel Travel – Depends on width, but respectively 24” usable on fullsize and less for the narrower setups.

Steering Setup – This Bulkhead is designed for a Power Steering Solutions or HOWE Rack, other options are available upon request.

Hubs and Brakes – This platform utilizes standard 12 bolt faceplates for a variety of bolt on hub options from standard 2.5” up to TT assemblies.

***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Universal / platform-agnostic
Part Family	Front Bulkhead / Front-End Assemblies (tube chassis front clip)
Position	Front suspension
Build System	Stage 1 / Stage 2 / Stage 3 complexity tier

Frequently Asked Questions

Are these files set up for a steering rack or do I need a different version for a box?

This is the RACK version of the Stage 2 truck bulkhead, so it's laid out for a rack setup. JEHC offers a variety of options though, so if you're running something different, the rep from JEH Consulting reaching out after purchase can point you to the right files.

What material and thickness should I cut these plates from?

It's designed to be cut from 4130 Chromoly. Just keep in mind some of these plates are made to be bent (press), so you'll want to run them on a plasma, laser, or waterjet and have them pressed where the design calls for it.

Do these need to be TIG welded or can I MIG them into my chassis?

It's designed to be TIG welded, but some folks have MIG welded them in the past. For a bulkhead this critical we'd lean toward TIG, but that call is yours on your build.

How do I get the Stage 2 TRUCK Bulkhead - RACK - from JEHC after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Stage 2 TRUCK Bulkhead - RACK - from JEHC cost?

The Stage 2 TRUCK Bulkhead - RACK - from JEHC is $2,400.00.

Who designs the Stage 2 TRUCK Bulkhead - RACK - from JEHC?

This Stage 2 TRUCK Bulkhead - RACK - from JEHC is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Complete Bulkhead (Front End) Assemblies?

DIY Off Road has downloadable DXF cut files for Complete Bulkhead (Front End) Assemblies plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Complete Bulkhead (Front End) Assemblies category, or shoot us an email and we will point you to the right files for your build.

Do you have Race/Play Chassis Components cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Complete Bulkhead (Front End) Assemblies, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
