Complete Y Frame Assembly Custom Ross King Pre-runner (Stage 3 Skill)
$5,000.00
In stock
SKU
600-JEH-RK YFrame

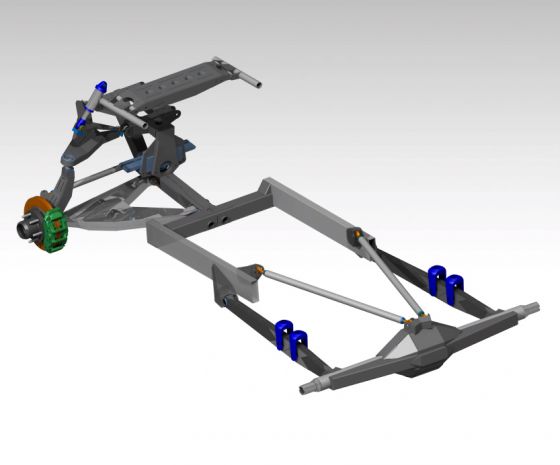

This is the updated version that Tekk co-founder Jason Heard designed for Ross King of King shocks years ago.
Designed with some complexity so skillsets required bring this bulkhead into Stage 3 territory, email info@tekkconsulting.com for any question on this.
Specifications are below.
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Designed with some complexity so skillsets required bring this bulkhead into Stage 3 territory, email info@tekkconsulting.com for any question on this.
Specifications are below.
***This product is a Digital Asset, you are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
This unique Y-frame assembly features some unique charcteristics that are specific to the style for the pre-runner it was designed for. It is designed for two different tire pacakages:
High Backspace (short course) wheel with 35” Tires – Roughly 88” trackwidth.
Or, Standard Backspace Race (TT wheel) 37” Tires – roughly 91.5” Trackwidth.
The wheelbase was originally designed for 114” but can be anything above that.
Rear Link Mounts are designed to work with a section of 2x6” 0.125” wall matrial. Any rextangle tube in that range will work for the main frame rails.
Bulkhead Rake – Setup at 8 deg, consistant caster throughout travel.
Shocks – Designed around 14” stroke 3.0 coilover and 4” bypass shocks.
Bumpstop – Bolt in “mini shock” style bump with Traditional Slapper Arm
Rear Links – King Clevis style links 50” link arms.
Rear End housing – Custom Tekk Fabricated Housing 3.5” tube.
Wheel Travel – 22” Front, 28” Rear Usable Travel.
Steering Setup – This Bulkhead is designed for a Howe 103 Rack
Hubs and Brakes – This platfrom utilizes standard 12 bolt clevises from Blitzkrieg Motorsports for a variety of bolt on hub options from standard 2.5” up to TT assemblies.
High Backspace (short course) wheel with 35” Tires – Roughly 88” trackwidth.
Or, Standard Backspace Race (TT wheel) 37” Tires – roughly 91.5” Trackwidth.
The wheelbase was originally designed for 114” but can be anything above that.
Rear Link Mounts are designed to work with a section of 2x6” 0.125” wall matrial. Any rextangle tube in that range will work for the main frame rails.
Bulkhead Rake – Setup at 8 deg, consistant caster throughout travel.
Shocks – Designed around 14” stroke 3.0 coilover and 4” bypass shocks.
Bumpstop – Bolt in “mini shock” style bump with Traditional Slapper Arm
Rear Links – King Clevis style links 50” link arms.
Rear End housing – Custom Tekk Fabricated Housing 3.5” tube.
Wheel Travel – 22” Front, 28” Rear Usable Travel.
Steering Setup – This Bulkhead is designed for a Howe 103 Rack
Hubs and Brakes – This platfrom utilizes standard 12 bolt clevises from Blitzkrieg Motorsports for a variety of bolt on hub options from standard 2.5” up to TT assemblies.
