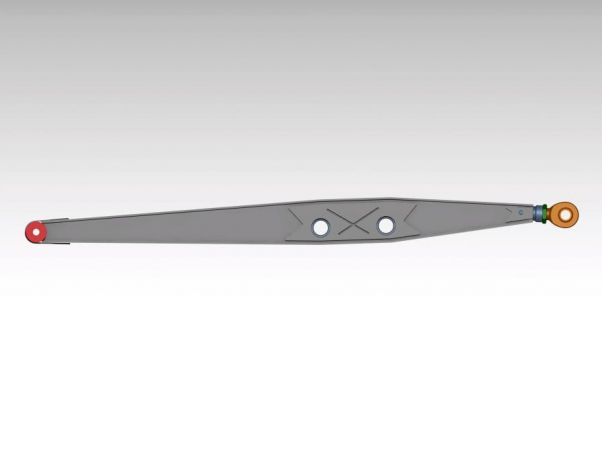

55" Clevis Style Boxed Links from JEHC

These are DXF cut files for the boxed link arms themselves, designed around 7/8" uniball bearing cups that weld in — one for the coil-over and one for the bypass. The cups themselves aren't part of the download, so you'll want to grab those separately to weld in once you've cut the arms.

The files are drawn for the clevis-style boxed link design, and they were built to be lighter and easier to fabricate than traditional boxed arms. We don't list a set thickness in the file info, so shoot us an email and we'll point you to what the designer ran and recommend a shop if you need them cut.

They were originally designed for a King Shocks luxury-prerunner K5 Blazer, so that's what they're confirmed for. The clevis mounting style is pretty universal, but link length and geometry matter, so email us with your build and we'll see if these fit or if another file works better for you.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The 55" Clevis Style Boxed Links from JEHC is $68.00.

This 55" Clevis Style Boxed Links from JEHC is brought to you by JEHC. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Clevis Style Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Clevis Style Link Arms category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Clevis Style Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
