7/8" Rod End on 5/8" bolt Boxed Upper link Mount 20 deg.

Be the first to review this product

$12.00

In stock

SKU

605-JEH-100

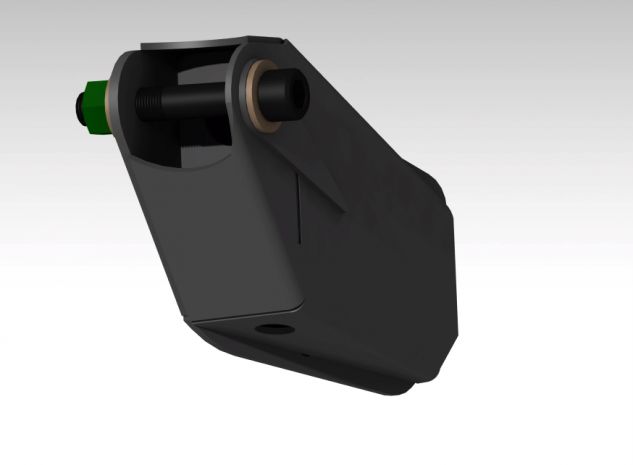

These upper link mounts were originally built for the Ross King Prerunner K5 and are designed for 7/8" rod ends with 5/8" bolts. The mount locates the upper link at 20 degrees to match or mimic the upper links of a 4 link setup on the top of the rear end housing. These mounts have drain holes built into them to let water/dirt to drain out of the mount to help combat rust over time.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
