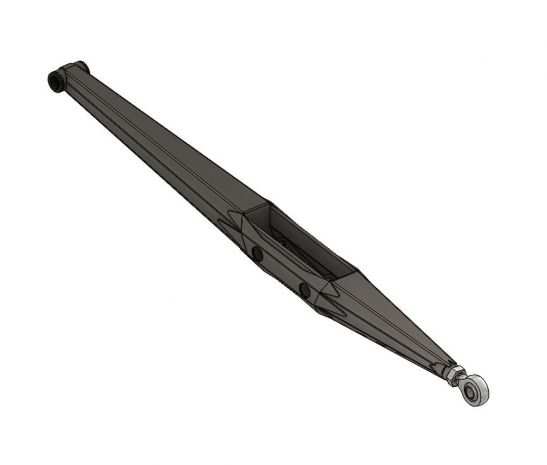

58" Boxed Link Solid (CAD) File from Baja Customs
1.5" shock mount spacing, extended shock ends may be required.
File types:
-IGES, and E-drawing models
-DXF (laser cut) files
-2d, 3d PDF's copies
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Boxed / Clevis / Tube Link Arms & Trailing Arms |
| Build System | Link suspension (general rod-end / uniball link) |
Frequently Asked Questions
The 58" is pivot to pivot, not overall length. Keep that in mind when you're laying out your link geometry.
The shock mount spacing is 1.5". Heads up, you may need extended shock ends to make it work, so check your shocks before you cut.
You get IGES and E-drawing models, DXF laser cut files, and 2D/3D PDFs, so you can have the plates cut on a plasma, laser, or waterjet. These are boxed link plates that get cut and bent (press) before you weld them up into your link arm.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 58" Boxed Link Solid (CAD) File from Baja Customs is $300.00.
This 58" Boxed Link Solid (CAD) File from Baja Customs is brought to you by Baja Customs. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Boxed Link Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Boxed Link Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Desert Racing / Pre-runner Link Arms, including Boxed Link Arms, all designed by working fab shops. Browse the Desert Racing / Pre-runner Link Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
